Same model may have multiple batches, images only for reference.

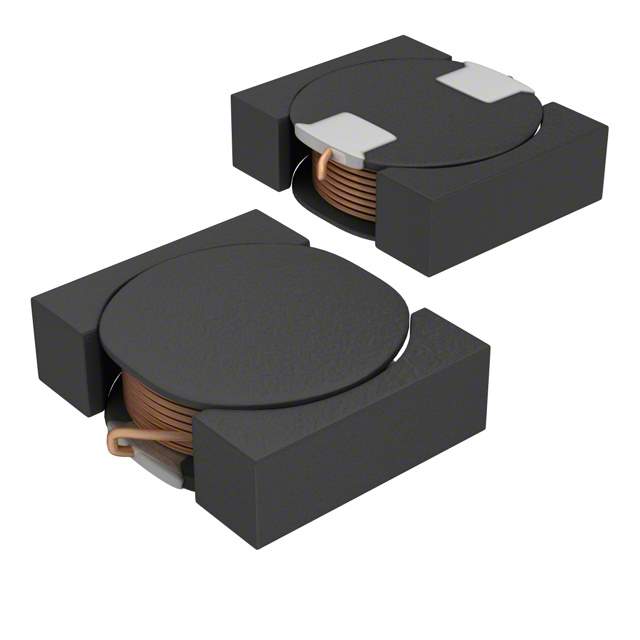

VLF504015MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF504015MT-4R7M

Part No VLF504015MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.43A 70 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 2.43A
Current - Saturation 1.98A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807023-VLF504015MT-4R7M
Ultra Librarian 3D Model Ultra Librarian VLF504015MT-4R7M CAD Model

Description

The TDK Corporation 807023-VLF504015MT-4R7M is a high-quality wirewound inductor designed for use in electronic circuits.

  • Mounting Style: Shielded
  • Core Material: Ferrite
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 70mOhm
  • Current Saturation: 1.98A
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.197" L x 0.157" W (5.00mm x 4.00mm)
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,000
  • Status: Obsolete (end of life)
  • Popularity: Medium
