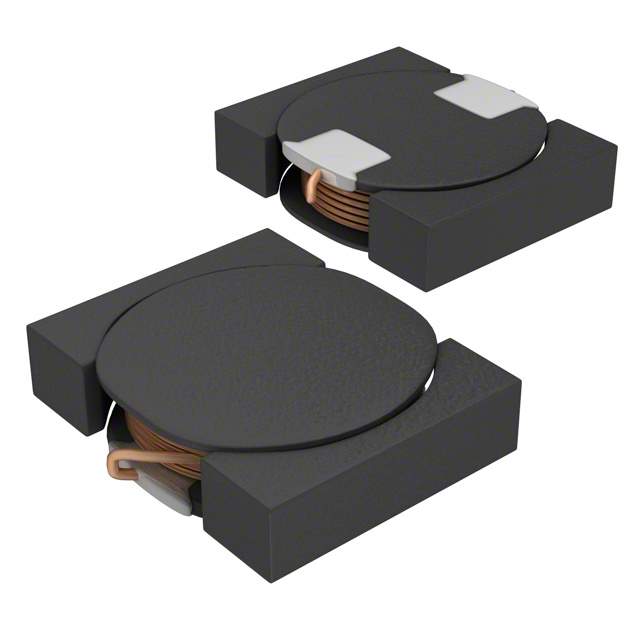

VLF504012MT-1R0N Real Image
Same model may have multiple batches, images only for reference.

VLF504012MT-1R0N

Part No VLF504012MT-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 3.19A 38 MOHM SMD / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating (Amps) 3.19A
Current - Saturation 3.67A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805445-VLF504012MT-1R0N
Ultra Librarian 3D Model Ultra Librarian VLF504012MT-1R0N CAD Model

Description

The TDK Corporation VLF504012MT-1R0N is an obsolete (end of life) wirewound inductor from TDK Corporation.

  • Inductor Type: Wirewound
  • Shielding: Shielded
  • Tolerance: ±30%
  • Family: Ferrite
  • Popularity: Low
  • Current Saturation: 3.67A
  • DC Resistance (DCR): 38mOhm Max
  • Temperature Range: -40°C to 105°C
  • Win Source Part Number: 805445-VLF504012MT-1R0N
