Same model may have multiple batches, images only for reference.

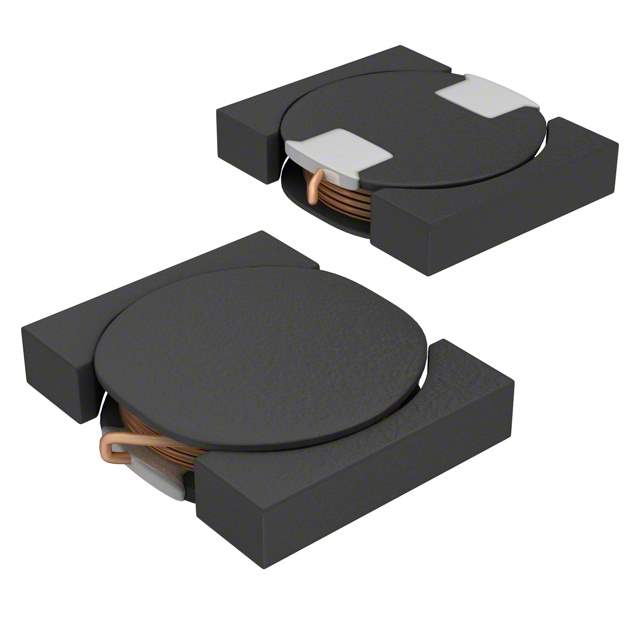

VLF504010MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-220M

Part No VLF504010MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite | FIXED IND 22UH 780MA 600 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 780mA
Current - Saturation 610mA
Shielding Shielded
DC Resistance (DCR) 600mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279380-VLF504010MT-220M
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-220M CAD Model

Description

TDK Corporation's VLF504010MT-220M is a wirewound inductor that has an inductance of 22μH and a tolerance of ±20%.

  • Inductance: 22μH
  • Tolerance: ±20%
  • Shielded: Yes (ferrite material)
  • Current Saturation: 610mA
  • DC Resistance (DCR): 600mOhm Max
  • Status: Obsolete
  • Temperature Range: -40°C to 105°C
  • Mounting: SMD
  • Seated Height: 0.039” (1.00mm)
  • Manufacturer Pack Quantity: 1
  • Supply and Demand: Limited
