Same model may have multiple batches, images only for reference.

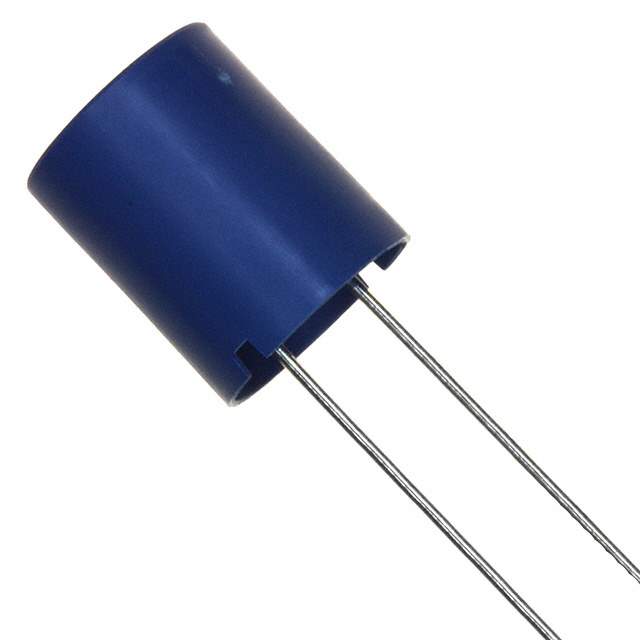

TSL1315RA-331K1R4-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-331K1R4-PF

Part No TSL1315RA-331K1R4-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 330UH 1.4A 300 MOHM TH
Datasheet
TSL1315RA-331K1R4-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 330μH
Tolerance ±10%
Current Rating 1.4A
Current - Saturation 2.1A
DC Resistance (DCR) 300 mOhm Max
Q @ Freq 30 @ 796kHz
Frequency - Self Resonant 1.8MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122969-TSL1315RA-331K1R4-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-331K1R4-PF CAD Model

Description

The TDK Corporation TSL1315RA-331K1R4-PF is an inductor which is designed for use in various electronic applications such as power supplies, lighting systems, and motor controls. It has a package size of through-hole mounting and is supplied in AMMO packaging.

  • Mounting: through-hole
  • Packaging: AMMO
  • Inductance: 330μH
  • Current Rating: 1.4A
  • Tolerance: ±10%
  • Saturation Current: 2.1A
  • Q Value: 30 @ 796kHz
  • Self-Resonant Frequency: 1.8MHz
  • Supply and Demand Status: balanced
  • Applications: power supplies, motor controls, and lighting systems
