Same model may have multiple batches, images only for reference.

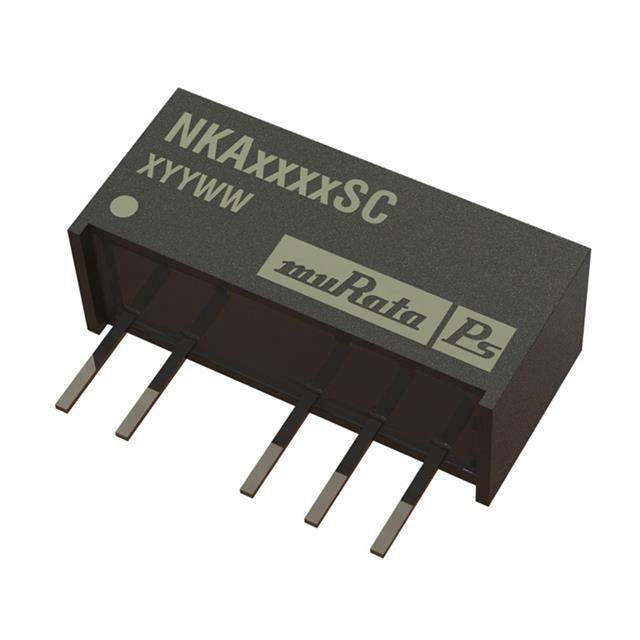

NKA0515SC Real Image
Same model may have multiple batches, images only for reference.

NKA0515SC

Part No NKA0515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA05
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1422-5
Standard Package 30
Win Source Part Number 1335277-NKA0515SC
Ultra Librarian 3D Model Ultra Librarian NKA0515SC CAD Model

Description

The NKA0515SC is an isolated module type DC DC converter electronic component manufactured by Murata Power Solutions Inc.

  • Power: 1 W
  • Efficiency: 79%
  • Voltage Isolation: 3 kV
  • Number of Outputs: 2
  • Maximum Output Current: 33mA each
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage for Output 1: 15V
  • Output Voltage for Output 2: -15V
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • ROHS3 Compliance: ROHS3 compliant
