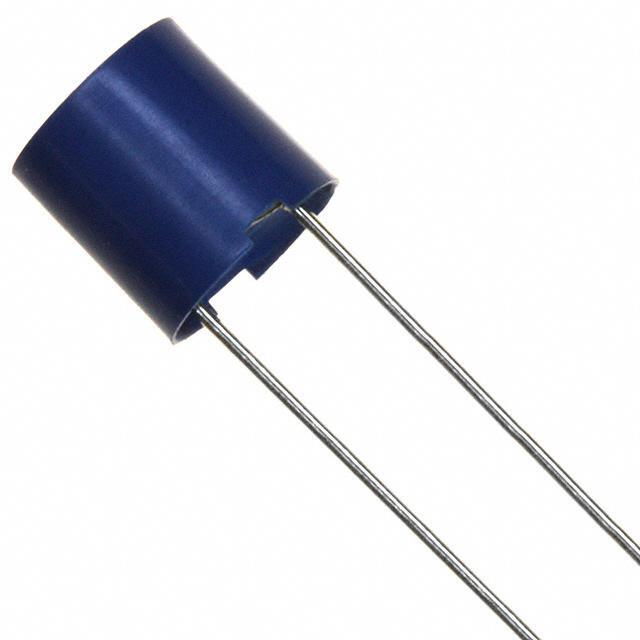

Same model may have multiple batches, images only for reference.
TSL0808RA-680K1R0-PF TDK Corporation
Same model may have multiple batches, images only for reference.

TSL0808RA-680K1R0-PF

Part No TSL0808RA-680K1R0-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 1A 160 MOHM TH / Inductor Power Wirewound 68uH 10% 1KHz 20Q-Factor 1.1A 160mOhm DCR RDL Ammo
Datasheet
TSL0808RA-680K1R0-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 68μH
Tolerance ±10%
Current Rating 1A
Current - Saturation 1A
DC Resistance (DCR) 160 mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 5.4MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.346" (8.80mm)
Win Source Part Number 117183-TSL0808RA-680K1R0-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TSL0808
Introduction Date August 06, 1999
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TSL0808RA-680K1R0-PF CAD Model

Description

The TSL0808RA-680K1R0-PF is an inductor manufactured by TDK Corporation.

  • Inductance: 68μH
  • Current: 1A
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Tolerance: ±10%
  • DC Resistance: 160 mOhm max
  • Alternative to: ELC09D680F, 622LY-680K, NLI87D680KUTBF, and NLI89D680KUTBF
