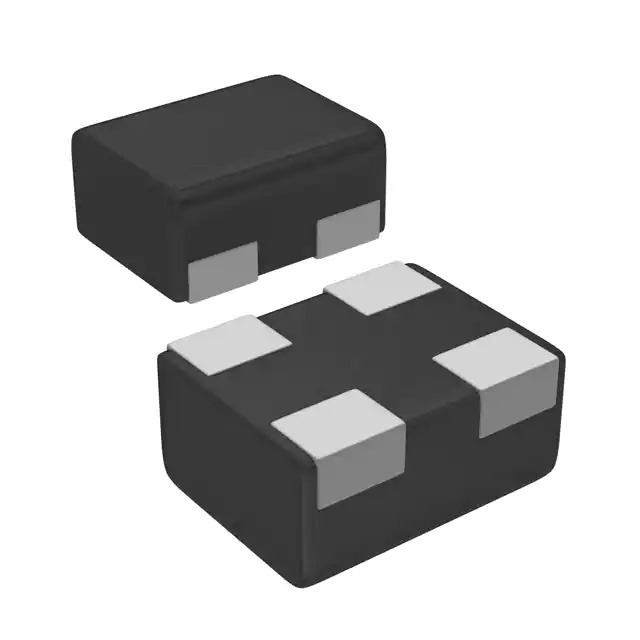

The TCM-G series is a collection of common mode chokes designed by TDK Corporation. This particular model, the TCM0806G-650-2P, is a surface mount filter with a package size of 0302 (0806 Metric), 4 Lead.

• Filter Type: Common Mode Choke
• Mounting Type: Surface Mount
• Package / Case: 0302 (0806 Metric), 4 Lead
• Voltage Rating DC: 10V DC
• Current Rating: 100mA
• Impedance @ Frequency: 65 Ohms @ 100 MHz
• DC Resistance (DCR) (Max): 2.5 Ohm
• Application: Signal Line
• Operating Temperature: -25°C to 85°C
• Height - Seated (Max): 0.018" (0.45mm)
• Series: TCM-G
• Product Status: Obsolete
• Packaging: Tape & Reel (TR)
• REACH SVHC Status: Unaffected
