Same model may have multiple batches, images only for reference.

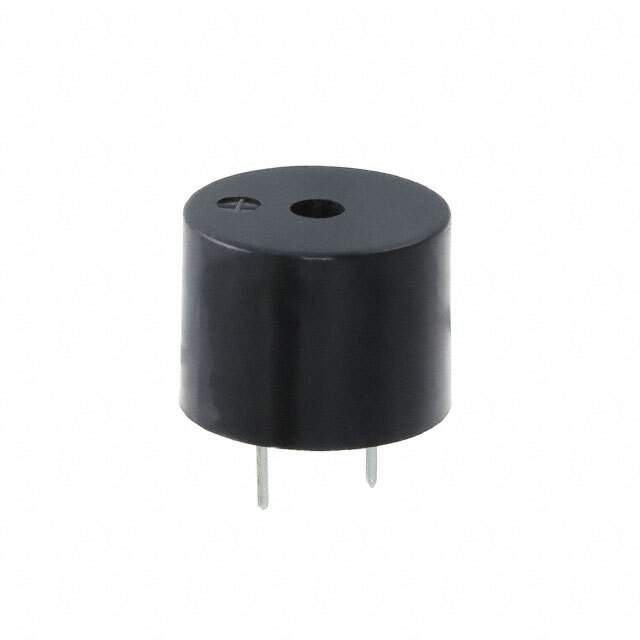

SD1209TT-A1 Real Image
Same model may have multiple batches, images only for reference.

SD1209TT-A1

Part No SD1209TT-A1
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series SD
Package Tray
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 12 V
Voltage Range 6 ~ 15V
Frequency 2.048kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 12V, 10cm
Current - Supply 100mA
Port Location Top
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Termination PC Pins
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Other Names 445-172995
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1314324-SD1209TT-A1
Ultra Librarian 3D Model Ultra Librarian SD1209TT-A1 CAD Model

Description

The SD1209TT-A1 is a single tone buzzer designed for use in audio products such as alarms, buzzers, and sirens. TDK Corporation manufactures this.

  • Series: SD
  • Rated Voltage: 12 V
  • Type: Magnetic
  • Frequency: 2.048kHz
  • SPL: 85dB @ 12V and 10cm
  • Current Supply: 100mA
  • Voltage Range: 6 ~ 15V
  • Mounting Type: Through-hole
  • Port Location: Top
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
