Same model may have multiple batches, images only for reference.

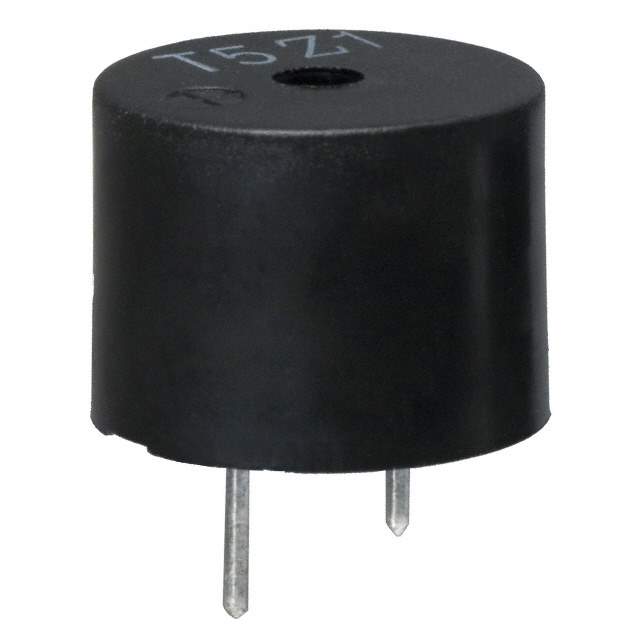

SD1209T5-A1 Real Image
Same model may have multiple batches, images only for reference.

SD1209T5-A1

Part No SD1209T5-A1
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 3-6V TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Estimated Pruduction Lead Time 7 Weeks
Features Buzzers Transducer, Externally Driven Magnetic 60mA 2.048kHz 80dB @ 5V, 10cm Through Hole PC Pins
Manufacturer TDK Corporation
Series SD
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Part Number 445-2531-1, 445-2531-3, 445-2531-3INACTIVATE, 445-2531, 445-2531-3-ND, 445-2531-1-ND, SD1209T5A1, Q7556517F
Quantity per package 800
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933196-SD1209T5-A1
Ultra Librarian 3D Model Ultra Librarian SD1209T5-A1 CAD Model

Description

The SD1209T5-A1 is an externally driven magnetic buzzer transducer from TDK Corporation and belongs to the SD series.

  • Ideal for: Use in Audio Products
  • Sound Frequency: 2.048 kHz
  • Loudness: 80 dB @ 5V, 10cm
  • Package: Tray
  • Mounting: Through-Hole
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Pieces per Package: 800
  • ECCN: EAR99
  • REACH: REACH Unaffected
  • Production Lead Time: 7 weeks (estimated)
  • HTSUS: 8531.80.9041
