Same model may have multiple batches, images only for reference.

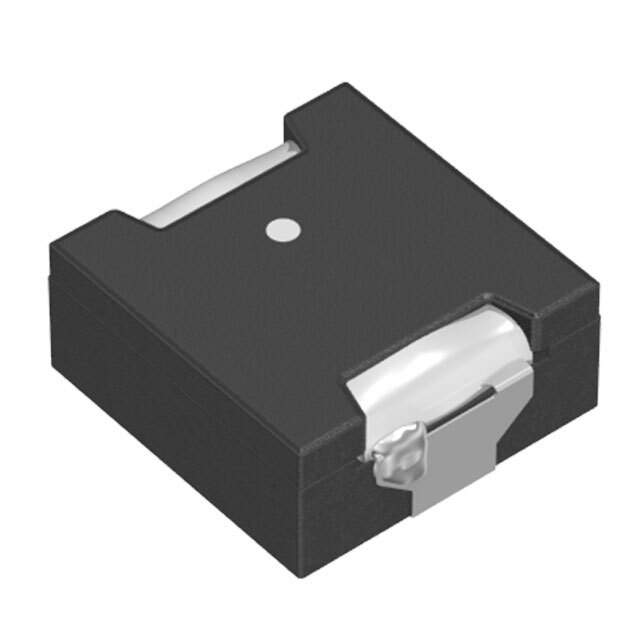

RLF12560T-5R6N9R2 Real Image
Same model may have multiple batches, images only for reference.

RLF12560T-5R6N9R2

Part No RLF12560T-5R6N9R2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 5.6UH 9.2A 8.5 MOHM
Datasheet
RLF12560T-5R6N9R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 5.6μH
Tolerance ±30%
Current Rating 9.2A
Current - Saturation 9.7A
DC Resistance (DCR) 10.2 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.185" (4.70mm)
Win Source Part Number 027436-RLF12560T-5R6N9R2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RLF12560T-5R6N9R2 CAD Model

Description

Another wirewound inductor, coil, choke component manufactured by TDK Corporation with a Win Source Part Number of 027436-RLF12560T-5R6N9R2.

  • Win Source Part Number: 027436-RLF12560T-5R6N9R2
  • Current Rating: 9.2A
  • Inductance: 5.6μH
  • Popularity: Medium
  • Fake Products Threat: 85%
  • Supply and Demand: Sufficient
  • Status: Active
