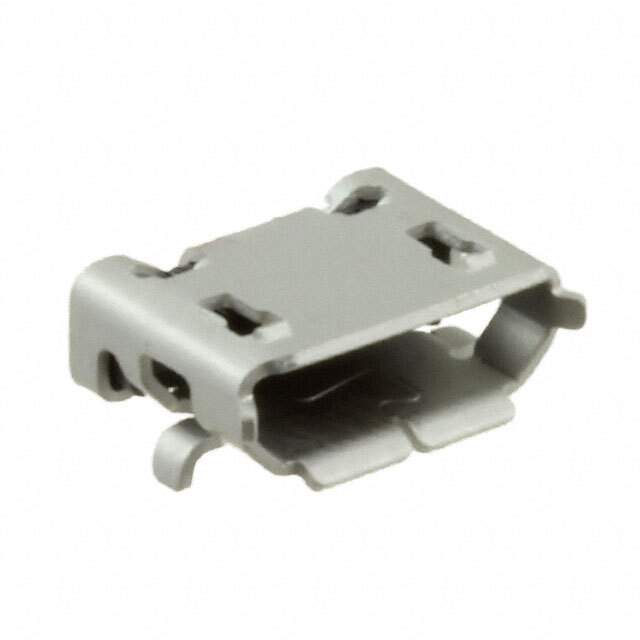

ZX62D1-B-5PA(30) Real Image
Same model may have multiple batches, images only for reference.

ZX62D1-B-5PA(30)

Part No ZX62D1-B-5PA(30)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
Manufacturer Hirose Electric Co Ltd
Series ZX
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle; Through Hole
Family Name ZX62
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H126316TR, 242-0048-5-30, ZX62D1-B-5PA(30)-ND, H126316CT, H126316DKR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904367-ZX62D1-B-5PA(30)
Ultra Librarian 3D Model Ultra Librarian ZX62D1-B-5PA(30) CAD Model

Description

The Hirose Electric Co Ltd ZX62D1-B-5PA(30) is a micro B USB 2.0 receptacle connector that belongs to the ZX62 series.

  • Series: ZX62
  • Positions: 5
  • Mounting: Surface Mount, Right Angle; Through Hole
  • Operating Temperature Range: -30°C to 85°C
