Same model may have multiple batches, images only for reference.

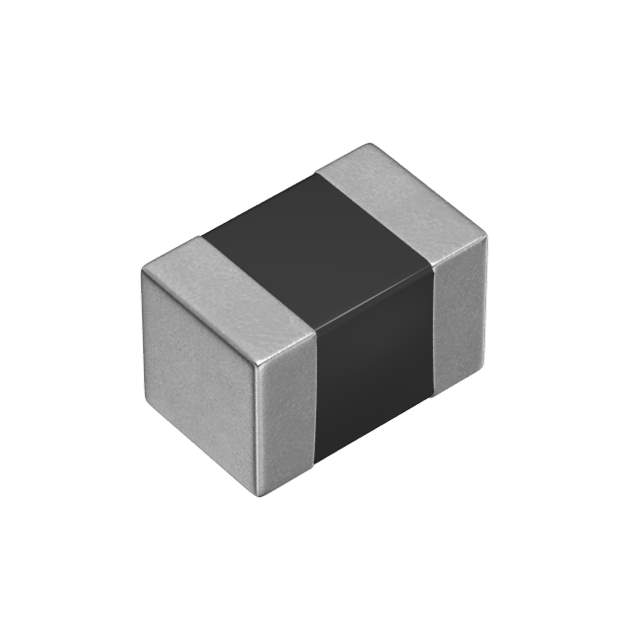

MLZ2012M3R3ATD69 Real Image
Same model may have multiple batches, images only for reference.

MLZ2012M3R3ATD69

Part No MLZ2012M3R3ATD69
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLZ
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 350mA
Shielding Shielded
DC Resistance (DCR) 200mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.057" (1.45mm)
Other Names 445-180843-1,445-180843-2,445-180843-6
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272712-MLZ2012M3R3ATD69
Ultra Librarian 3D Model Ultra Librarian MLZ2012M3R3ATD69 CAD Model

Description

The TDK Corporation 1272712-MLZ2012M3R3ATD69 is an electronic component that is an inductor, coil, choke>fixed inductor with a multilayer type.

  • Tolerance: ±20%
  • Inductance: 3.3 µH
  • Height-Seated (Max): 0.057" (1.45mm)
  • Standard Package: 2,000
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Current Rating (Amps): 500 mA
  • Current Saturation (Isat): 350mA
  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1272712-MLZ2012M3R3ATD69
