Same model may have multiple batches, images only for reference.

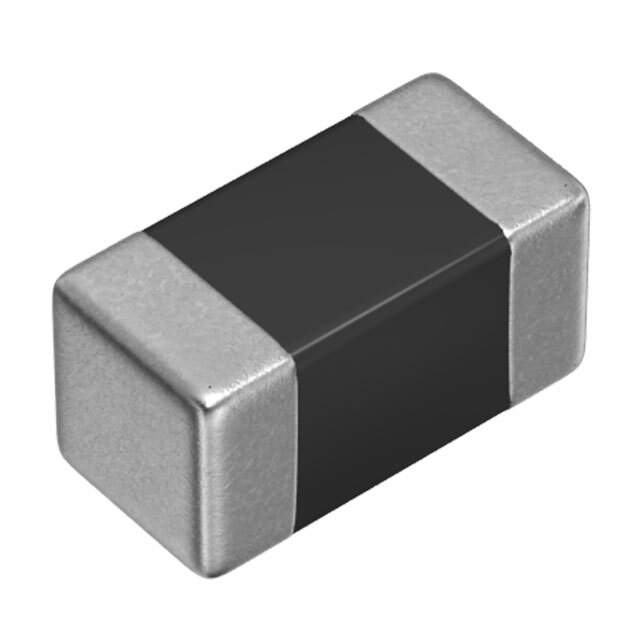

MLF1005DR27KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005DR27KT

Part No MLF1005DR27KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 270NH 25MA 1.3 OHM SMD
Datasheet
MLF1005DR27KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 270nH
Tolerance ±10%
Current Rating 25mA
DC Resistance (DCR) 1.3 Ohm Max
Q @ Freq 10 @ 25MHz
Frequency - Self Resonant 260MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 099151-MLF1005DR27KT
Ultra Librarian 3D Model Ultra Librarian MLF1005DR27KT CAD Model

Description

The TDK Corporation MLF1005DR27KT is a multilayer surface mount device (SMD) inductor that has a height of 0.022" (0.55mm). It has a current rating of 25mA and an inductance of 270nH. The inductor has a ±10% tolerance and a DC resistance (DCR) of 1.3 Ohm Max. It is RoHS compliant and is suitable for use in a variety of electronic applications. The inductor has a frequency self-resonant of 260MHz and a frequency test of 25MHz. It has an obsolete (EOL) status and is packaged in a 0402 (1005 Metric) case/package.
