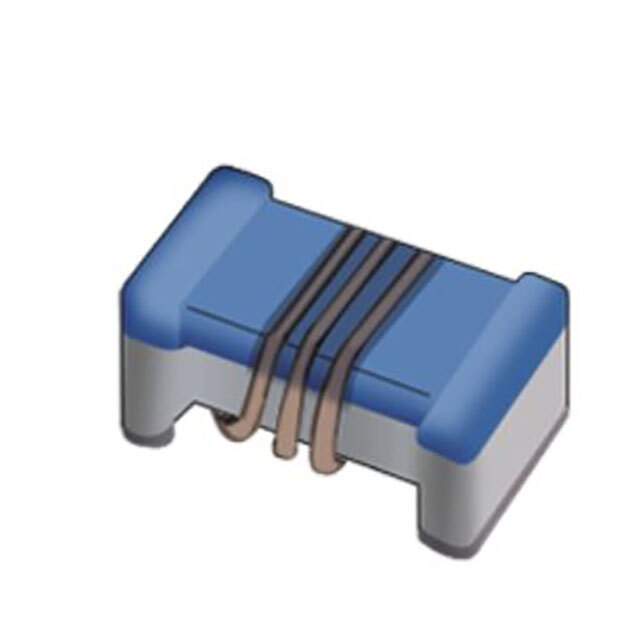

LQW15AN2N3G80D Real Image1 LQW15AN2N3G80D Real Image2
Same model may have multiple batches, images only for reference.
LQW15AN2N3G80D Real Image1 LQW15AN2N3G80D Real Image2
LQW15AN2N3G80D Real Image1 LQW15AN2N3G80D Real Image2
Same model may have multiple batches, images only for reference.

LQW15AN2N3G80D

Part No LQW15AN2N3G80D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND / 2.3 nH Unshielded Wirewound Inductor 2.53 A 22mOhm Max 0402 (1005 Metric)
Datasheet
LQW15AN2N3G80D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics North America
Series LQW15
Package Tape & Reel
Type Wirewound
Material - Core Non-Magnetic
Inductance 2.3 nH
Tolerance ±2%
Current Rating (Amps) 2.53 A
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 22mOhm Max
Q @ Freq 30 @ 250MHz
Frequency - Self Resonant 15.5GHz
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number LQW15AN
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 10,000 pcs
Win Source Part Number 1382541-LQW15AN2N3G80D
Ultra Librarian 3D Model Ultra Librarian LQW15AN2N3G80D CAD Model

Description

The LQW15AN2N3G80D is a wirewound fixed inductor from Murata Electronics.

  • Series: LQW15
  • Size: 0.039" L x 0.024" W (1.00mm x 0.60mm)
  • Inductance: 2.3 nH
  • Tolerance: ±2%
  • Shielding: Unshielded
  • Package: Tape & Reel
  • Height: 0.024" (0.60mm) max
  • DC Resistance (DCR): 22mOhm max
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 2.53 A
  • Q Value: 30 @ 250MHz
  • Self-Resonant Frequency: 15.5GHz
  • Mounting Type: Surface Mount
  • Standard Package: 10,000 pcs
  • Magnetic: Non-magnetic
  • REACH: Unaffected
