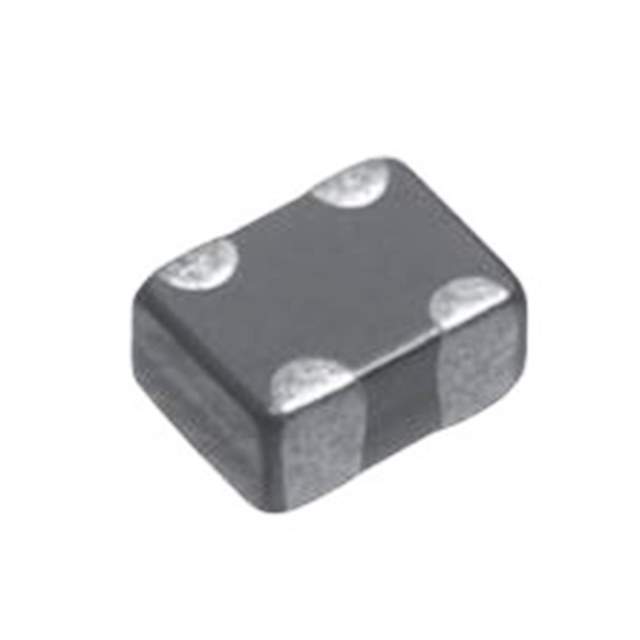

MCZ0806AH500L2TA0G Real Image
Same model may have multiple batches, images only for reference.

MCZ0806AH500L2TA0G

Part No MCZ0806AH500L2TA0G
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 2LN 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 50 Ohms at 100MHz
Current Rating (Maximum) 100mA
DC Resistance (DCR) (Maximum) 3Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Dimension 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Maximum) 0.020" (0.50mm)
Manufacturer Package 0302 (0806 Metric), 4 Lead
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801532-MCZ0806AH500L2TA0G
Ultra Librarian 3D Model Ultra Librarian MCZ0806AH500L2TA0G CAD Model

Description

The TDK Corporation 801532-MCZ0806AH500L2TA0G from TDK Corporation is an electronic component with sufficient supply and demand status.

  • Applications: Signal Line Filter
  • Voltage Rating: 5V DC
  • Mounting: SMD
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.033" L x 0.026" W (0.85mm x 0.65mm)
  • Height: 0.020" (0.50mm)
  • Current Rating (Max): 100mA
  • DC Resistance (DCR) (Max): 3Ohm
  • Impedance: 50 Ohms @ 100MHz
