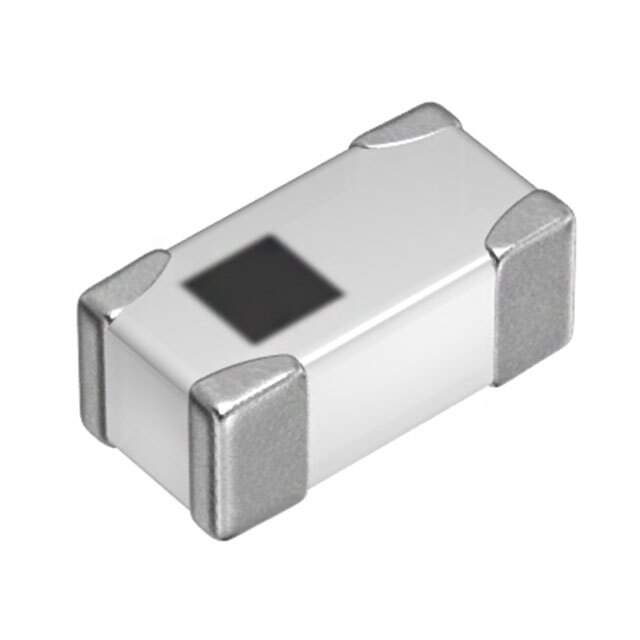

HHM2933A1 Real Image
Same model may have multiple batches, images only for reference.

HHM2933A1

Part No HHM2933A1
Manufacturer TDK Corporation
Catalog RF Directional Coupler
Description RF DIR COUPLER 2.4-2.5GHZ 0402 / RF Directional Coupler General Purpose 2.4GHz ~ 2.5GHz 0402 (1005 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Coupler Type Standard
Frequency 2.4GHz ~ 2.5GHz
Applications General Purpose
Insertion Loss 0.37dB
Isolation 26dB
Package / Case 0402 (1005 Metric), 4 PC Pad
Supplier Device Package 0402 (1005 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-175605-6,445-175605-1,445-175605-2
Standard Package 10,000
Win Source Part Number 1062792-HHM2933A1
Ultra Librarian 3D Model Ultra Librarian HHM2933A1 CAD Model

Description

The TDK Corporation HHM2933A1 is a standard RF directional coupler that operates @ a frequency range of 2.4GHz to 2.5GHz.

  • Design: This coupler is designed for general-purpose applications and has a maximum power rating.
  • Insertion Loss: It has a low insertion loss of 0.37dB
  • Isolation: high isolation of 26dB.
  • Package: The package is available in tape and reel form and has a standard package of 10,000.
  • Coupler Type: Standard
  • Package/Case: 0402 (1005 Metric), 4 PC Pad.
  • Supplier: The device is supplied by TDK Corporation and is an alternative part for 445-175605-6, 445-175605-1, 445-175605-2.
