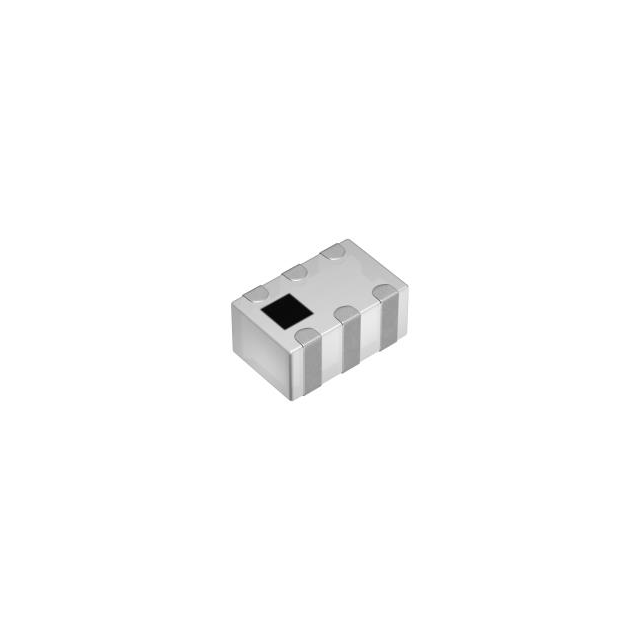

HHM1522E3 Real Image
Same model may have multiple batches, images only for reference.

HHM1522E3

Part No HHM1522E3
Manufacturer TDK Corporation
Catalog Balun
Description MULTILAYER BALUN FOR 680-1100MHZ  /  RF Balun 680MHz ~ 1.1GHz 50 / 50Ohm 0805 (2012 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Frequency Range 680MHz ~ 1.1GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 180°
Insertion Loss (Max) 1.5dB
Return Loss (Min) 9.5dB
Package / Case 0805 (2012 Metric), 6 PC Pad
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-181439-1,445-181439-2,445-181439-6
Standard Package 2,000
Win Source Part Number 967674-HHM1522E3
Ultra Librarian 3D Model Ultra Librarian HHM1522E3 CAD Model

Description

The TDK Corporation HHM1522E3 balun is an efficient and reliable electronic component.

  • Manufacturer: TDK Corporation
  • Frequency Range: 680MHz ~ 1.1GHz
  • Impedance: 50 / 50Ohm
  • Phase Difference: 180°
  • Insertion Loss: 1.5dB
  • Return Loss: 9.5dB
  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Type: Active
  • Application: RF/IF and RFID Baluns
