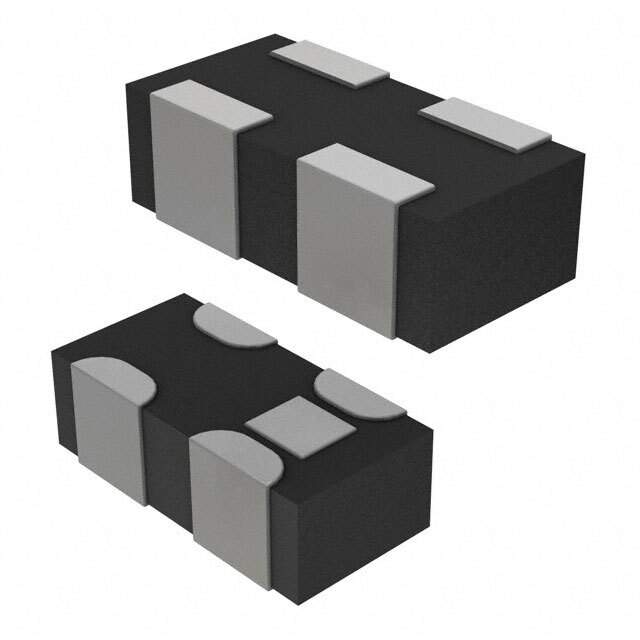

DPX105950DT-6012A1 Real Image
Same model may have multiple batches, images only for reference.

DPX105950DT-6012A1

Part No DPX105950DT-6012A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.4GHZ/5.425GHZ 0402 / RF Diplexer 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0402 (1005 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
Frequency Bands (Low / High) 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 30.00dB / -
High Band Attenuation (min / max dB) 20.00dB / -
Return Loss (Low Band / High Band) 10.0dB / 10.0dB
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-172909-1,445-172909-2,445-172909-6
Standard Package 10,000
Win Source Part Number 1055934-DPX105950DT-6012A1
Ultra Librarian 3D Model Ultra Librarian DPX105950DT-6012A1 CAD Model

Description

The DPX105950DT-6012A1 from TDK Corporation is an RF multiplexer diplexer with a frequency range of 2.3GHz ~ 2.5GHz for the low band and 4.9GHz ~ 5.95GHz for the high band.

  • Low Band Attenuation: 30.00dB
  • High Band Attenuation: 20.00dB
  • Return Loss (Low and High Bands): 10.0dB
  • Win Source Part Number: 1055934
  • Mounting Type: Surface Mount
