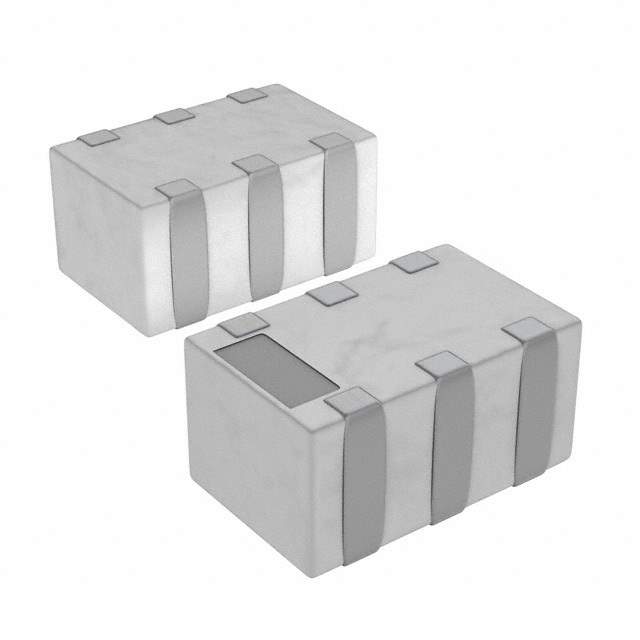

DPX202170DT-4149A1 Real Image
Same model may have multiple batches, images only for reference.

DPX202170DT-4149A1

Part No DPX202170DT-4149A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 892MHZ/1.94GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 11 Weeks
Features RF Diplexer 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz 0805 (2012 Metric), 6 PC Pad
Manufacturer TDK Corporation
Series DPX
Package Reel - TR
Mounting Surface Mount
Package 0805 (2012 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-15620-6, 445-15620-2, 445-15620-1
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917204-DPX202170DT-4149A1
Ultra Librarian 3D Model Ultra Librarian DPX202170DT-4149A1 CAD Model

Description

The TDK Corporation DPX202170DT-4149A1 is an RF diplexer that operates within a frequency range of 824MHz to 960MHz and 1.71GHz to 2.17GHz. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Frequency Range: 824MHz to 960MHz and 1.71GHz to 2.17GHz
  • Dimensions: 0805 (2012 Metric)
  • PC Pads: 6
  • Packaging: Reel - TR
  • Mounting: Surface Mount
  • Application: RF/IF and RFID Circuits
