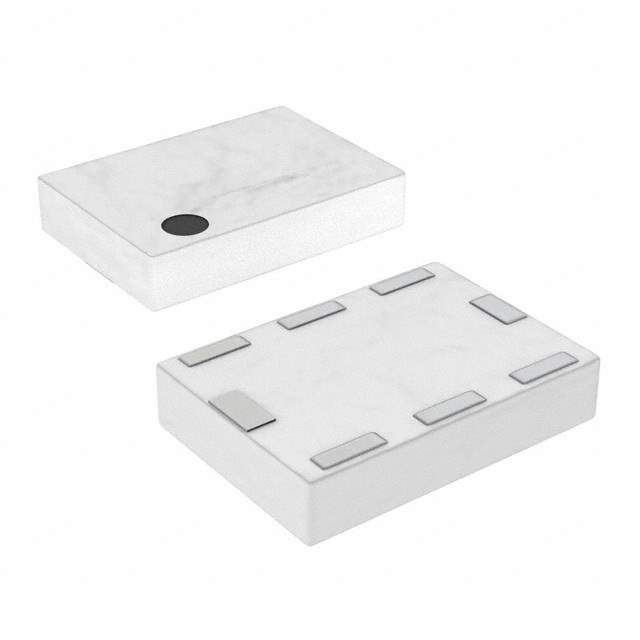

DEA453960BT-3002B1 Real Image
Same model may have multiple batches, images only for reference.

DEA453960BT-3002B1

Part No DEA453960BT-3002B1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 3.96GHZ 1812 / 3.96GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.584GHz Bandwidth 1.7dB 1812 (4532 Metric), 8 PC Pad
Datasheet
DEA453960BT-3002B1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Obsolete
Frequency 3.96GHz Center
Bandwidth 1.584GHz
Filter Type Band Pass
Insertion Loss 1.7dB
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric), 8 PC Pad
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names DEA453960BT3002B1,445-3388-1,445-3388-2,445-3388-6
Standard Package 2,000
Win Source Part Number 1042192-DEA453960BT-3002B1
Ultra Librarian 3D Model Ultra Librarian DEA453960BT-3002B1 CAD Model

Description

The TDK DEA453960BT-3002B1 is a bandpass filter with a center frequency of 3.96GHz and a bandwidth of 1.584GHz.

  • Center Frequency: 3.96GHz
  • Bandwidth: 1.584GHz
  • Insertion Loss: 1.7dB
  • Application: RF Filter
  • Packaging: Tape and Reel
  • Quantity: 2,000
  • Height: 0.035" (0.90mm)
  • Mounting: Surface Mount Technology (SMT)
  • Package Size: 1812 (4532 Metric), 8 PC Pad
  • Rating: 50 pct
  • Temperature Range: -40°C to 85°C
  • Component Status: Obsolete
