Same model may have multiple batches, images only for reference.

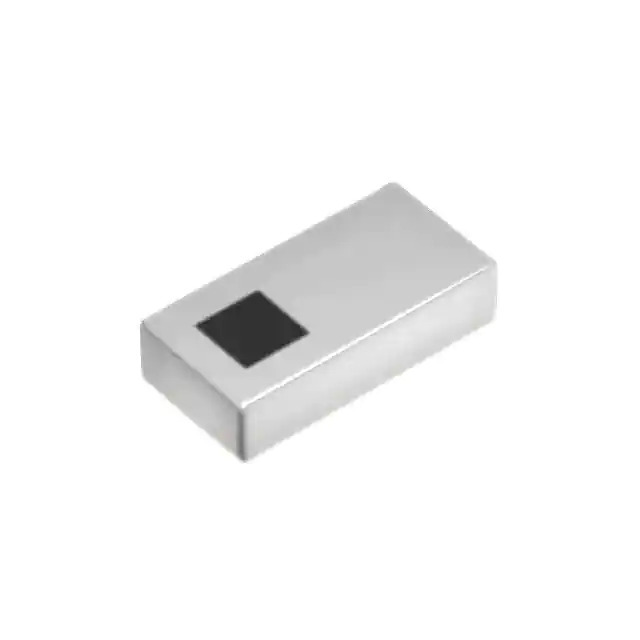

DEA204700BT-2307A1 TDK Corporation
Same model may have multiple batches, images only for reference.

DEA204700BT-2307A1

Part No DEA204700BT-2307A1
Manufacturer TDK Corporation
Catalog RF Filters
Description MULTILAYER BPF FOR 5G-H
Datasheet
DEA204700BT-2307A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Frequency 4.7GHz
Bandwidth 600MHz
Filter Type Band Pass
Ripple -
Insertion Loss 1.08dB
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 6 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.026" (0.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1373381-DEA204700BT-2307A1
Ultra Librarian 3D Model Ultra Librarian DEA204700BT-2307A1 CAD Model

Description

The DEA204700BT-2307A1 is a bandpass RF filter from TDK Corporation. TDK Corporation

  • Series: DEA
  • Frequency: 4.7GHz
  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric), 6 PC Pads
  • Insertion Loss: 1.08dB
  • Bandwidth: 600MHz
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.026" (0.65mm)
  • Product Status: Active
