Same model may have multiple batches, images only for reference.

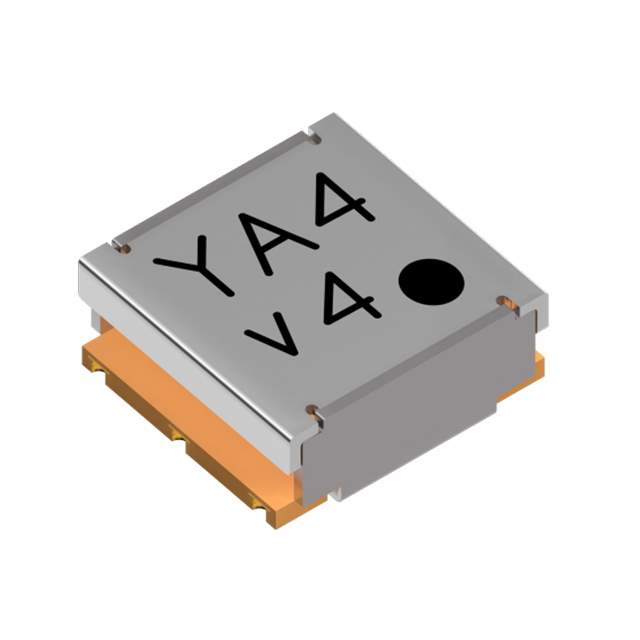

CU4S0508BT-3450-00 Real Image
Same model may have multiple batches, images only for reference.

CU4S0508BT-3450-00

Part No CU4S0508BT-3450-00
Manufacturer TDK Corporation
Catalog Custom Parts (B - D)
Description ISOLATOR, CU4S0508 SERIES, CCW, /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Circulators and Isolators
Mfr TDK Corporation
Series CU4S0508
Package Tape & Reel
Type Isolator
Frequency 3.3 GHz ~ 3.6 GHz
Isolation 10dB (Min)
Power - Average Forward 5 W
Insertion Loss 1dB (Max)
VSWR 1.8
Package / Case 6-SMD, No Lead
Supplier Device Package 6-SMD
MSL Level 1 (Unlimited)
Other Names 445-CU4S0508BT-3450-00TR,445-CU4S0508BT-3450-00DKR,445-CU4S0508BT-3450-00CT
Standard Package 1,000
Win Source Part Number 1163261-CU4S0508BT-3450-00
Ultra Librarian 3D Model Ultra Librarian CU4S0508BT-3450-00 CAD Model

Description

The CU4S0508 Isolator is a high-performance device that is designed to provide excellent isolation in RF/IF and RFID applications.

  • Frequency Range: 3.3 GHz to 3.6 GHz
  • Insertion Loss: 1dB (max)
  • Isolation: 10dB (min)
  • VSWR: 1.8
  • Package: 6-SMD, no lead
  • Standard Package Size: 1,000
  • MSL Level: 1 (unlimited)
