Same model may have multiple batches, images only for reference.

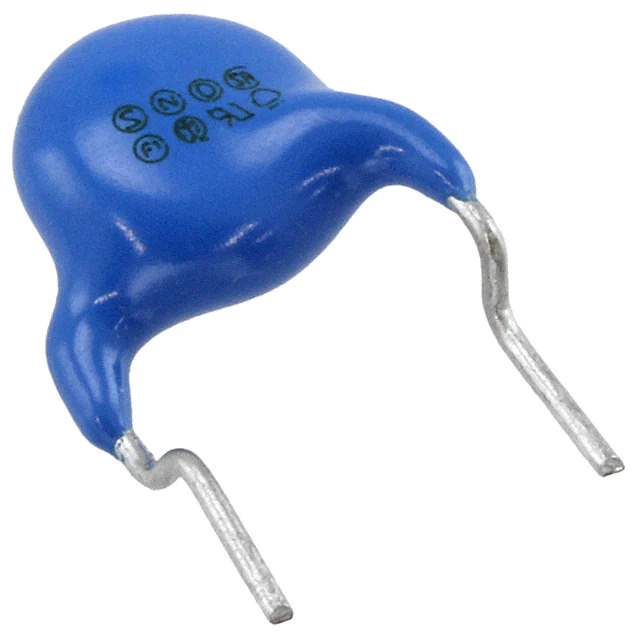

CS80ZU2GA222MYNKA Real Image
Same model may have multiple batches, images only for reference.

CS80ZU2GA222MYNKA

Part No CS80ZU2GA222MYNKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 300/440VAC Z5U / 2200 pF ±20% 300VAC/440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CS
Package Bulk
Product Status Obsolete
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 300VAC/440VAC
Temperature Coefficient Z5U
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.315" Dia (8.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 916092-CS80ZU2GA222MYNKA
Ultra Librarian 3D Model Ultra Librarian CS80ZU2GA222MYNKA CAD Model

Description

The CS80ZU2GA222MYNKA is a ceramic capacitor from the CS series.

  • Voltage Rating: 300VAC/440VAC
  • Capacitance: 2200 pF
  • Tolerance: ±20%
  • Diameter: 0.315" (8.00mm)
  • Application: safety applications
  • Ratings: X1 and Y2 ratings
  • Mounting: through-hole component
  • Package: radial, disc
