CKG57NX7R2E105M500JH TDK Corporation
Same model may have multiple batches, images only for reference.

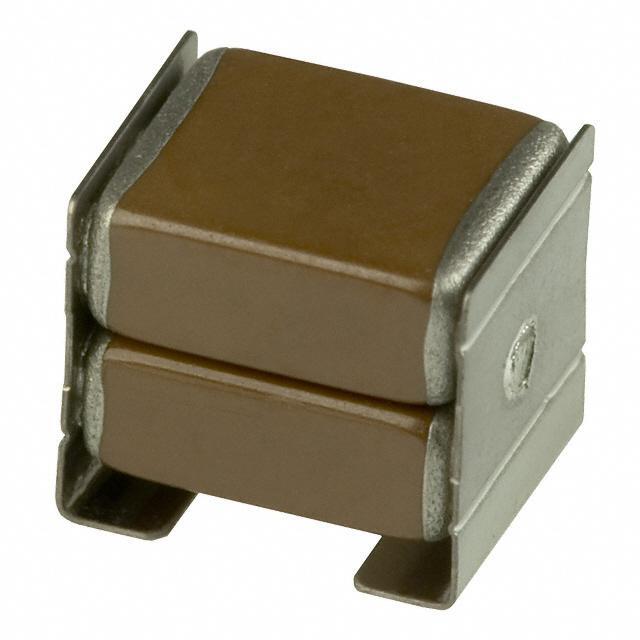

CKG57NX7R2E105M500JH

Part No CKG57NX7R2E105M500JH
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1UF 250V X7R SMD / Cap Ceramic 1uF 250V X7R 20% 2 Stacked 125°C T/R
Datasheet
CKG57NX7R2E105M500JH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series MEGACAP, CKG
Packaging Reel package
Capacitance 1μF
Tolerance ±20%
Voltage Rating DC 250V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Surface Mount, MLCC
Package Stacked SMD, 2 J-Lead
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Thickness (Maximum) 0.217" (5.50mm)
Lead Style J-Lead
Win Source Part Number 771533-CKG57NX7R2E105M500JH
Popularity Medium
Supply and Demand Status Limited
Family Name CKG57
Introduction Date May 26, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CKG57NX7R2E105M500JH CAD Model

Description

The TDK Corporation MEGACAP CKG series capacitor is a high-performance surface mount multilayer ceramic capacitor (MLCC) designed for use in SMPS filtering, bypass, and decoupling applications.

  • Capacitance: 1μF
  • Voltage Rating DC: 250V
  • Features: Low equivalent series inductance (ESL)
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Package: Stacked SMD with 2 J-Leads
  • Dimensions: 0.236" L x 0.197" W (6.00mm x 5.00mm)
  • Thickness (Max): 0.217" (5.50mm)
  • Halogen-Free: Yes
  • ECCN: EAR99
  • Estimated EOL Date: 2028
  • Supply and Demand: Limited
