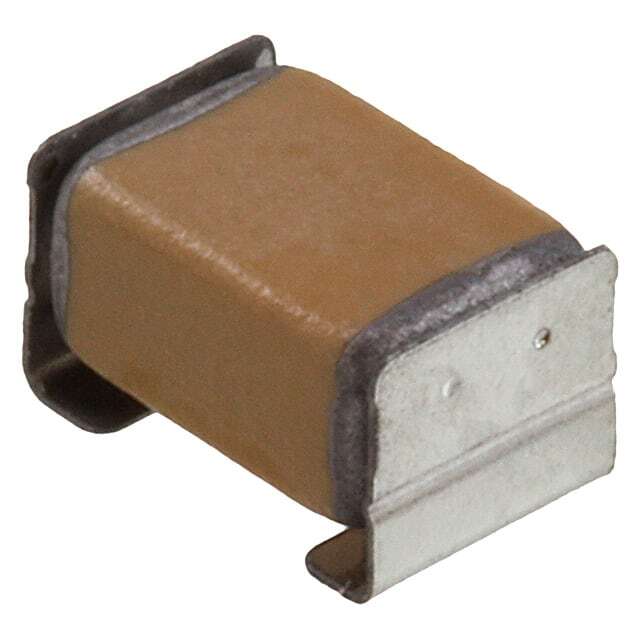

Same model may have multiple batches, images only for reference.
CKG45KX7R1C226M290JH TDK Corporation
Same model may have multiple batches, images only for reference.

CKG45KX7R1C226M290JH

Part No CKG45KX7R1C226M290JH
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series MEGACAP, CKG
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Surface Mount, MLCC
Package / Case SMD, J-Lead
Dimension 0.197" L x 0.138" W (5.00mm x 3.50mm)
Thickness (Max) 0.118" (3.00mm)
Lead Style J-Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1315243-CKG45KX7R1C226M290JH
Ultra Librarian 3D Model Ultra Librarian CKG45KX7R1C226M290JH CAD Model

Description

The TDK Corporation 1315243-CKG45KX7R1C226M290JH is a ceramic capacitor with a capacitance of 22 µF and a voltage rating of 16V.

  • Capacitance: 22 µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Thickness: 0.118 inches
  • Lead Spacing: Not specified
  • Lead Style: J-Lead
  • Mounting Type: Surface mount, MLCC
  • Applications: SMPS filtering, bypass, and decoupling
