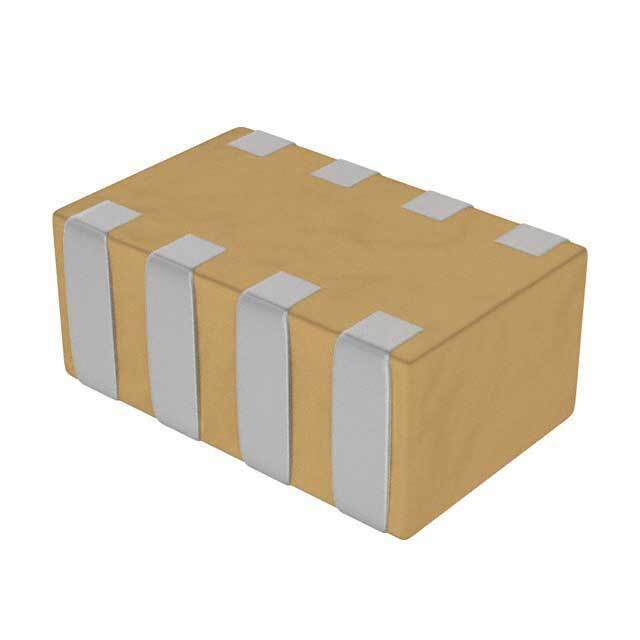

CKCA43C0G1H220K100AA Real Image
Same model may have multiple batches, images only for reference.

CKCA43C0G1H220K100AA

Part No CKCA43C0G1H220K100AA
Manufacturer TDK Corporation
Catalog Capacitor Networks, Arrays
Datasheet
CKCA43C0G1H220K100AA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Capacitor Networks, Arrays
Mfr TDK Corporation
Series CKC
Package Tape & Reel
Product Status Obsolete
Capacitance 22pF
Tolerance ±10%
Voltage - Rated 50 V
Dielectric Material Ceramic
Number of Capacitors 4
Circuit Type Isolated
Temperature Coefficient C0G, NP0
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.045" (1.15mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1314619-CKCA43C0G1H220K100AA
Ultra Librarian 3D Model Ultra Librarian CKCA43C0G1H220K100AA CAD Model

Description

The TDK Corporation CKCA43C0G1H220K100AA is a ceramic capacitor with a capacitance of 22pF and a voltage rating of 50V.

  • Capacitance: 22pF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: C0G, NP0
  • Type: Circuit-isolated
  • Package/Case Size: 1206 (3216 Metric)
  • Number of Capacitors: Four
  • Mounting Type: Surface Mount Device (SMD)
  • Height: 0.045" (1.15mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Applications: Capacitor networks and arrays
