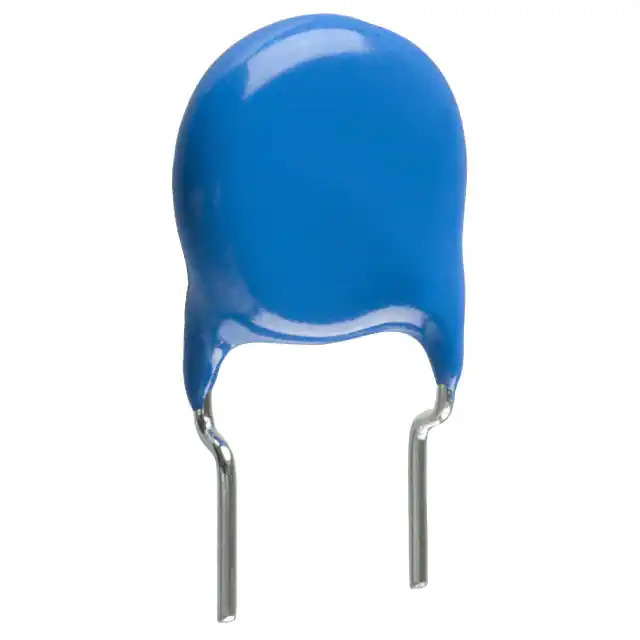

Same model may have multiple batches, images only for reference.
CK45-E3FD222ZYNNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-E3FD222ZYNNA

Part No CK45-E3FD222ZYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 3KV RADIAL / 2200 pF -20%, +80% 3000V (3kV) Ceramic Capacitor E Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance -20%, +80%
Voltage - Rated 3000V (3kV)
Temperature Coefficient E
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.374" Dia (9.50mm)
Height - Seated (Max) 0.531" (13.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360011-CK45-E3FD222ZYNNA
Ultra Librarian 3D Model Ultra Librarian CK45-E3FD222ZYNNA CAD Model

Description

The TDK Corporation CK45 series is a high voltage ceramic capacitor with a capacitance of 2200 pF and a voltage rating of 3000V (3kV).

  • Capacitance: 2200 pF
  • Voltage Rating: 3000V (3kV)
  • Application: General Purpose
  • Tolerance: -20%, +80%
  • Package: Radial, Disc
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.374" Dia (9.50mm)
  • Temperature Coefficient: E
  • Manufacturer: TDK Corporation
  • Product Status: Active
