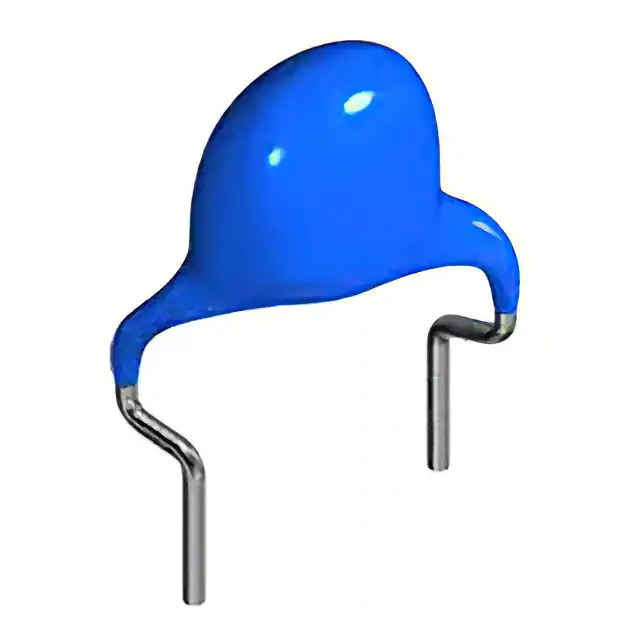

Same model may have multiple batches, images only for reference.
CK45-B3AD151KYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3AD151KYVNA

Part No CK45-B3AD151KYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 150PF 1KV RADIAL / 150 pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 150 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359993-CK45-B3AD151KYVNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3AD151KYVNA CAD Model

Description

The CK45 series is a high voltage ceramic capacitor with a capacitance of 150 pF and a voltage rating of 1000V (1kV) from TDK Corporation.

  • Capacitance: 150 pF
  • Voltage Rating: 1000V (1kV)
  • Application: General Purpose
  • Tolerance: ±10%
  • Package: Radial, Disc
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.217" Dia (5.50mm)
  • Temperature Coefficient: B
