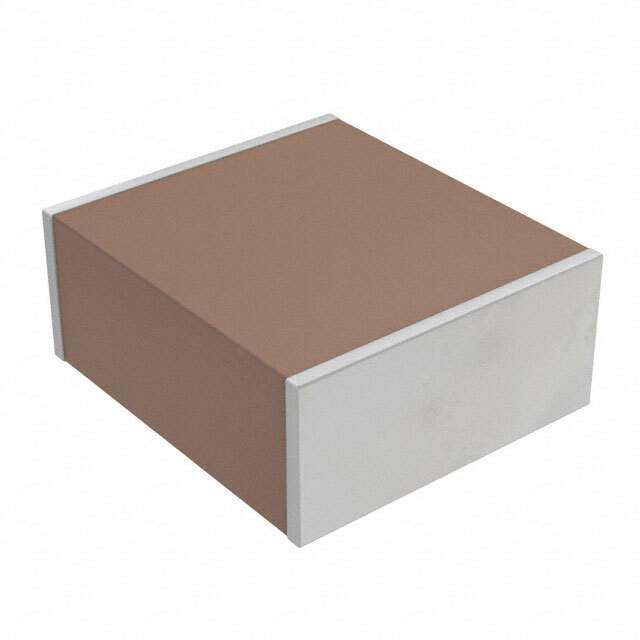

The CGA9P3X7S2A156MT0Y0N is a multilayer ceramic capacitor (MLCC) from TDK Corporation, designed for applications that require high capacitance and stable performance. It is characterized by its X7S dielectric, which provides a good balance between capacitance stability and temperature coefficient. This component is part of the CGA series, known for its reliability and versatility in various electronic circuits.

Applications

• Bypass Capacitors: Reduces noise and stabilizes voltage in electronic circuits, especially in power supplies and digital systems.
• Decoupling Capacitors: Used to isolate and filter noise in integrated circuits and microcontroller-based systems.
• Smoothing Capacitors: Minimizes voltage ripple in power supplies, ensuring stable and clean power delivery.
• Energy Storage: Can be used for small-scale energy storage in portable electronic devices.
• Filtering Applications: Implemented in filter circuits to remove unwanted frequency components.

Features

• X7S Dielectric: Offers a good balance between capacitance stability and temperature coefficient.
• Multilayer Ceramic Capacitor (MLCC): Provides high capacitance in a compact package.
• Small Size: Enables high-density mounting on printed circuit boards.
• High Capacitance Value: Suitable for applications requiring significant capacitance.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Stable Performance: The X7S dielectric offers reliable capacitance over a wide temperature range, ensuring consistent circuit operation.
• Space Saving: The small size allows for efficient use of PCB space, enabling compact and densely populated designs.
• Effective Noise Reduction: Filters out unwanted noise and voltage fluctuations, improving circuit performance.
• Enhanced Reliability: Provides stable and reliable operation, contributing to the overall robustness of electronic devices.
• Wide Application Range: Suitable for a broad spectrum of electronic applications due to its combination of high capacitance and stable characteristics.

Specifications

The CGA9P3X7S2A156MT0Y0N capacitor has a capacitance value of 15 µF. It is rated for a voltage of 100 VDC. The operating temperature range is -55°C to +125°C. The tolerance on the capacitance is ±20%. The capacitor typically comes in a case size of 1812. The termination is typically a nickel barrier with tin plating for good solderability and long-term reliability.
