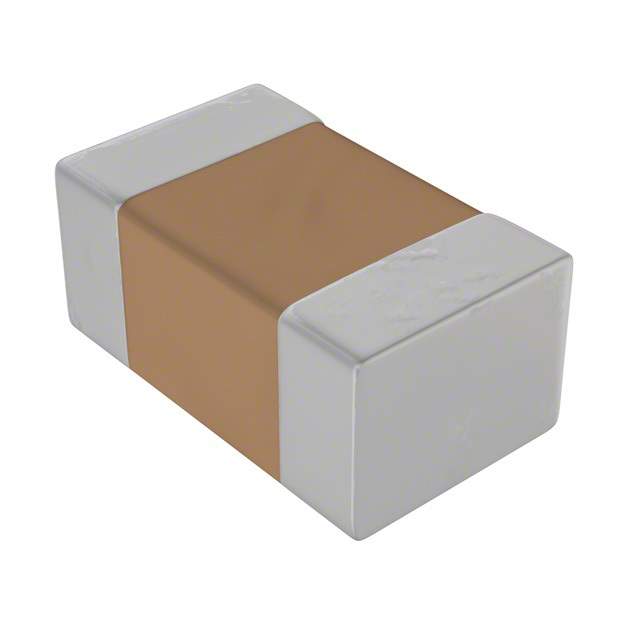

The C2012X7R1H104KT0J0N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It utilizes an X7R dielectric, which provides stable performance over a broad temperature range. This capacitor is commonly used for decoupling, bypassing, and filtering in diverse electronic applications.

Applications

• Decoupling power supply lines to minimize voltage fluctuations
• Bypassing noise in digital circuits for improved signal quality
• Filtering unwanted frequencies in signal processing circuits
• DC blocking in amplifier circuits
• Smoothing voltage ripples in DC power circuits

Features

• X7R Dielectric: Stable capacitance from -55°C to +125°C.
• Compact Size: 2012 (EIA 0805) case size, suitable for high-density PCB layouts.
• Capacitance: 0.1µF (100nF) capacitance value.
• Voltage Rating: 50V DC voltage rating.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances directive.

Benefits

• Temperature Stability: Maintains consistent performance across a wide temperature range, ensuring reliable operation.
• Space Efficiency: Compact size allows for efficient use of board space.
• Effective Noise Reduction: Excellent decoupling and bypassing capabilities minimize noise and signal distortion.
• Versatile Use: Suitable for a broad range of applications due to its stable characteristics.
• Environmentally Friendly: RoHS compliance minimizes environmental impact.

Additional Details

The C2012X7R1H104KT0J0N features a capacitance tolerance of ±10%. Its operating temperature spans from -55°C to +125°C. The termination finish is typically matte tin plating, offering excellent solderability. It is designed for reflow soldering and is supplied in tape and reel packaging for automated assembly processes.

This MLCC is a reliable and cost-effective choice for various applications where stable capacitance and a small form factor are important. Its characteristics make it suitable for use in automotive electronics, industrial equipment, and consumer devices.
