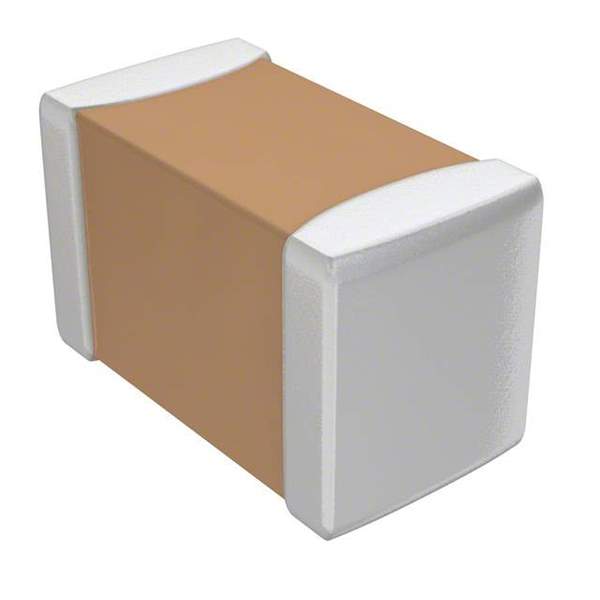

The C1608X5R1A106MT000E is a multilayer ceramic capacitor (MLCC) from TDK Corporation. This component is designed for general-purpose applications where a high capacitance value is required in a small form factor. It utilizes an X5R dielectric material, which provides a good balance between size, capacitance, and temperature stability.

Applications:

• Bypass and decoupling in various electronic circuits
• Smoothing capacitors in power supplies
• DC-DC converters
• Portable electronic devices such as smartphones and tablets
• General-purpose use in consumer electronics

Features:

• Size: 1608 (EIA 0603) - Dimensions of 1.6mm x 0.8mm
• Capacitance: 10µF (microfarads)
• Voltage Rating: 10V (Volts)
• Dielectric: X5R - Offers a good capacitance-to-size ratio and temperature stability
• Termination: Nickel barrier with Tin plating - Ensures good solderability
• RoHS Compliant

Benefits:

• High Capacitance Value: Provides a large amount of capacitance in a small 0603 package.
• Stable Performance: The X5R dielectric provides reasonable capacitance stability over a wide temperature range.
• Reliable: Manufactured by TDK, a reputable company known for high-quality components.
• Compact Size: The small size allows for high-density circuit designs.
• Cost-Effective: Offers a good balance of performance and cost.

Technical Specifications:

The C1608X5R1A106MT000E capacitor, utilizing the X5R dielectric, exhibits a capacitance variation within ±15% over the temperature range of -55°C to +85°C. Its terminations are designed for reflow soldering, ensuring reliable connection to the PCB. It is widely used in various applications due to its high volumetric efficiency and stable electrical characteristics. This capacitor also features low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance), which contributes to its effectiveness in decoupling and bypassing applications.
