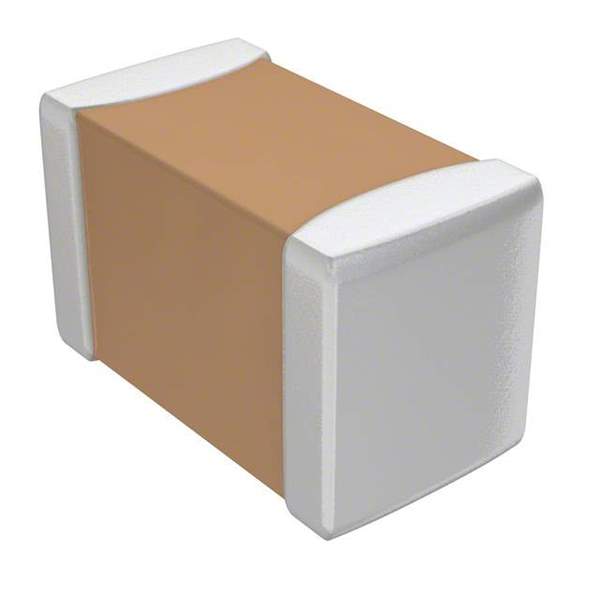

The C1608C0G1H221JT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. These capacitors are known for their small size, high capacitance values, and excellent reliability, making them suitable for a wide range of electronic applications.

Applications:

• Bypass capacitors: Used to suppress noise and voltage fluctuations in digital circuits.
• Decoupling capacitors: Provides a stable voltage source for integrated circuits.
• Filtering: Removes unwanted noise from electrical signals.
• Timing circuits: Used in oscillators and timers to control timing intervals.
• Smoothing: Reduces ripple voltage in power supplies.

Features:

• Small size: Allows for high-density circuit designs.
• High capacitance value: Provides significant charge storage in a small package.
• C0G dielectric: Offers excellent temperature stability and low dielectric losses.
• Low ESR (Equivalent Series Resistance): Minimizes energy losses and improves circuit performance.
• High reliability: Ensures long-term performance and minimal failure rates.

Benefits:

• Improved circuit performance: Reduces noise and voltage fluctuations, enhancing the stability of electronic circuits.
• Increased system reliability: Protects sensitive components from damage and ensures long service life.
• Miniaturization: Enables smaller and more compact electronic devices.
• Compliance with RoHS standards: Meets environmental regulations for hazardous substance content.
• Cost-effective solution: Offers a balance of performance and price, making it an economical choice for various applications.

Additional Details:

The C1608C0G1H221JT000N capacitor is a surface-mount device (SMD) with EIA size code 0603 (1.6mm x 0.8mm). The C0G dielectric provides a very stable capacitance over a wide temperature range, making it suitable for critical applications. Key specifications include capacitance (220 pF), rated voltage (50 V), tolerance (5%), and operating temperature range. Consult the TDK datasheet for precise electrical characteristics, including capacitance tolerance, dissipation factor, insulation resistance, and voltage ratings. These capacitors are commonly used in mobile phones, computers, and other electronic devices where small size and high performance are essential.
