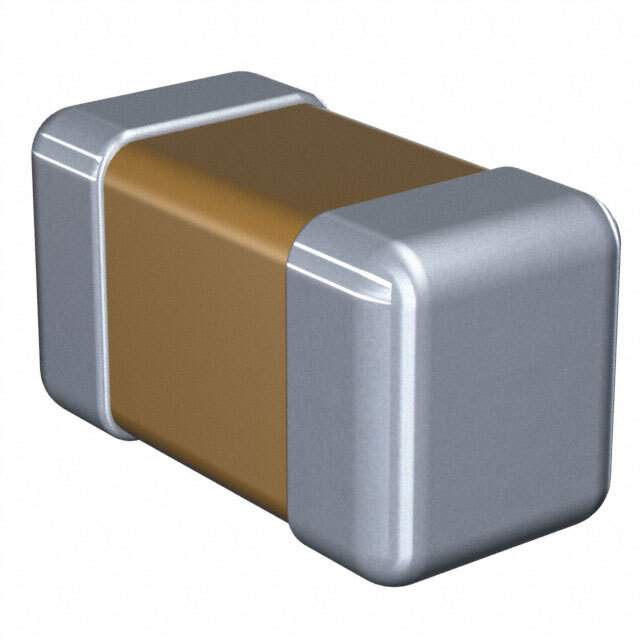

The C0603X7R1C332KT00NN is a ceramic multilayer capacitor (MLCC) manufactured by TDK Corporation. This capacitor has a capacitance value of 3.3 nF (3300 pF), a voltage rating of 16V, and uses X7R dielectric material. The 0603 case size indicates its compact dimensions, making it suitable for high-density circuit board designs.

Applications

• Bypass Capacitors: Used to decouple power supply lines and reduce noise in electronic circuits.
• Smoothing Capacitors: Filters out voltage ripples in power supplies and other DC circuits.
• Timing Circuits: Employed in timing circuits for oscillators and timers.
• Filtering Applications: Filters unwanted frequencies in signal processing circuits.
• General-Purpose Capacitance: Provides capacitance in a wide range of electronic applications.

Features

• Capacitance Value of 3.3 nF (3300 pF): Provides a specific capacitance value for circuit requirements.
• Voltage Rating of 16V: Withstands voltages up to 16V without dielectric breakdown.
• X7R Dielectric: Offers stable capacitance performance over a wide temperature range (-55°C to +125°C).
• 0603 Case Size: Compact dimensions for high-density circuit board layouts.
• Multilayer Ceramic Capacitor (MLCC): Provides high capacitance values in a small package size.

Benefits

• Stable Capacitance Performance: X7R dielectric ensures stable capacitance over temperature variations.
• Compact Size: 0603 case size saves valuable board space in miniaturized electronic devices.
• High Reliability: MLCC construction provides excellent reliability and long-term stability.
• Low ESR (Equivalent Series Resistance): Minimizes energy losses in high-frequency applications.
• Wide Temperature Range: Suitable for use in a variety of environmental conditions.

Additional Details

The C0603X7R1C332KT00NN has a capacitance tolerance of ±10%. The termination is typically nickel barrier with tin plating for excellent solderability. The capacitor is RoHS compliant, meaning it does not contain hazardous substances. Refer to the TDK datasheet for detailed specifications, including dimensions, capacitance drift over temperature and voltage, and other electrical characteristics.
