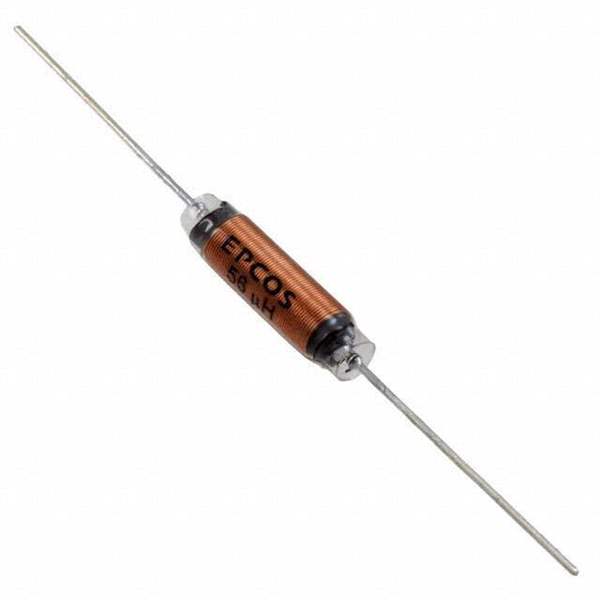

B82111E0000C024

Part No B82111E0000C024
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 56UH 1.5A 300 MOHM TH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Category Inductors, Coils, Chokes > Fixed Inductors
Part Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Shielding Unshielded
DC Resistance (DCR) 300mOhm
Frequency - Self Resonant 70MHz
Ultra Librarian 3D Model Ultra Librarian B82111E0000C024 CAD Model

Description

Features

• High resonant frequency

• Wide inductance range

• Design complies with EN 60938

• Suitable for wave soldering

• RoHS-compatible
