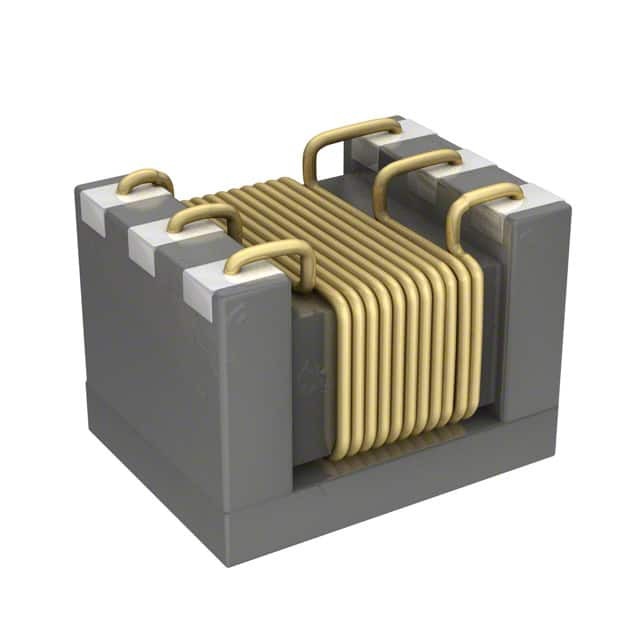

The TDK ATB3225-75034CT is a balun transformer designed for impedance matching and balanced-to-unbalanced signal conversion. As a key component in RF and wireless communication systems, it facilitates the interface between balanced circuits (e.g., differential amplifiers, antennas) and unbalanced circuits (e.g., single-ended transceivers). Its compact size and high performance make it suitable for a wide range of applications.

Applications:

• Antenna impedance matching in wireless communication devices
• Balanced amplifier and mixer designs
• Bluetooth, Wi-Fi, and Zigbee transceivers
• Differential signal conversion in RF front-ends
• Mobile phone and tablet RF circuitry

Features:

• Compact size (3.2mm x 2.5mm) for space-saving design
• High impedance ratio for optimal matching
• Low insertion loss to minimize signal attenuation
• Excellent return loss for improved signal reflection performance
• Surface mount device (SMD) for easy PCB integration

Benefits:

• Improved signal transmission efficiency
• Enhanced antenna performance
• Reduced signal reflections and impedance mismatches
• Smaller and lighter electronic devices
• Increased system reliability and performance

Technical Specifications:

• Impedance Ratio: Typically 50 ohms to 75 ohms
• Frequency Range: Varies depending on the specific application (typically covers common wireless frequencies)
• Insertion Loss: Usually less than 1 dB
• Return Loss: Usually greater than 15 dB
• Operating Temperature Range: -40°C to +85°C
• Package: 1210 (EIA) / 3225 (JIS)

The ATB3225-75034CT balun transformer is an essential component in modern wireless communication systems. It ensures efficient signal transfer between different impedance levels and signal formats. Its small size, high performance, and reliable operation make it an ideal choice for demanding applications in mobile devices, wireless networking equipment, and other RF systems. Its use helps to optimize signal quality and overall system performance.
