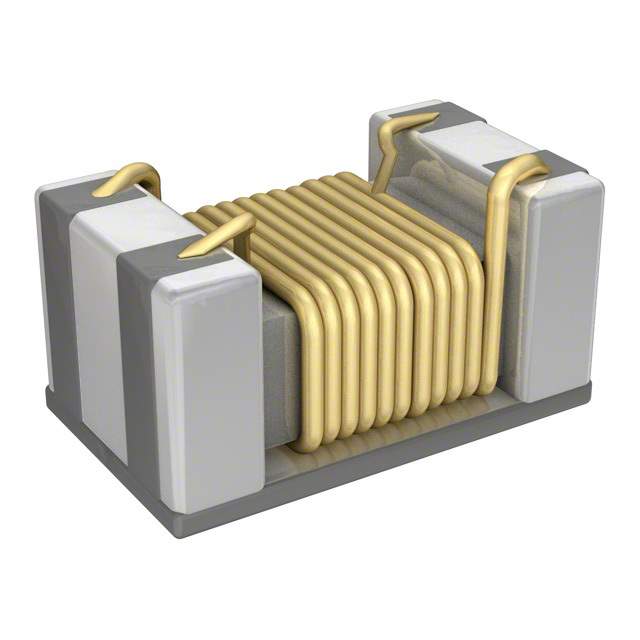

ATB2012E-75011M-T000 Real Image
Same model may have multiple batches, images only for reference.

ATB2012E-75011M-T000

Part No ATB2012E-75011M-T000
Manufacturer TDK Corporation
Catalog Balun
Description WOUND CHIP BALUN
Datasheet
ATB2012E-75011M-T000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Range 400MHz to 1.8GHz
Impedance - Unbalanced/Balanced 75 / 75 Ohm
Insertion Loss (Max) 2.0dB
Mounting Surface Mount
Win Source Part Number 1020021-ATB2012E-75011M-T000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATB2012E-75011M-T000 CAD Model

Description

The TDK Corporation ATB2012E-75011M-T000 is a surface mount product from TDK Corporation that belongs to the RF/IF and RFID categories.

  • Frequency Range: 400MHz to 1.8GHz
  • Unbalanced/Balanced Impedance: 75/75 Ohm
  • Insertion Loss: 2.0dB
  • Return Loss: Not specified
  • Supply and Demand Status: Balanced
