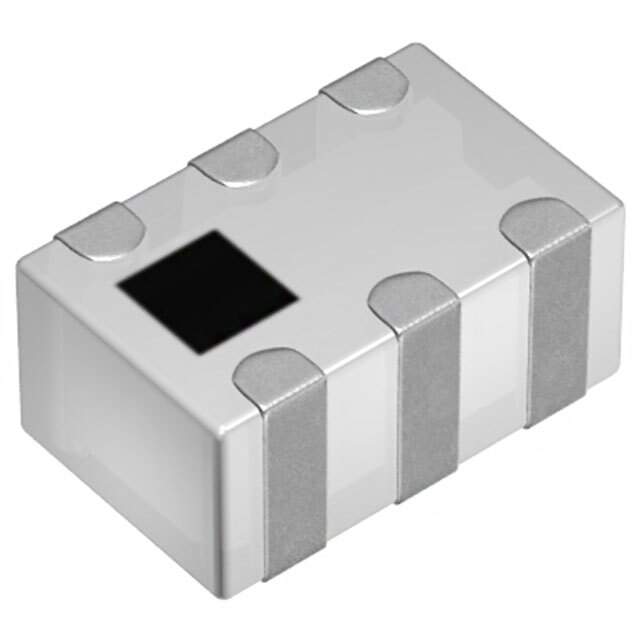

HHM1589D1 Real Image
Same model may have multiple batches, images only for reference.

HHM1589D1

Part No HHM1589D1
Manufacturer TDK Corporation
Catalog Balun
Description MULTILAYER BALUN FOR 350 - 950MH / Multilayer Balun
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Frequency Range 350MHz ~ 950MHz
Impedance - Unbalanced/Balanced 50 / 200Ohm
Phase Difference 180° ±20°
Insertion Loss (Maximum) 2.6dB
Return Loss (Min) 5dB
Manufacturer Package 0805 (2012 Metric), 6 PC Pad
Mounting Style Surface Mount
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801207-HHM1589D1
Ultra Librarian 3D Model Ultra Librarian HHM1589D1 CAD Model

Description

The TDK HHM1589D1 is a high-quality surface-mount balun transformer.

  • Frequency Range: 350MHz to 950MHz
  • Impedance: 50/200 ohms
  • Phase Difference: 180° ±20°
  • Return Loss: 5dB
  • Package: 0805 (2012 Metric), 6 PC Pad
  • Popularity: High
  • Supply and Demand Status: Sufficient
