Same model may have multiple batches, images only for reference.

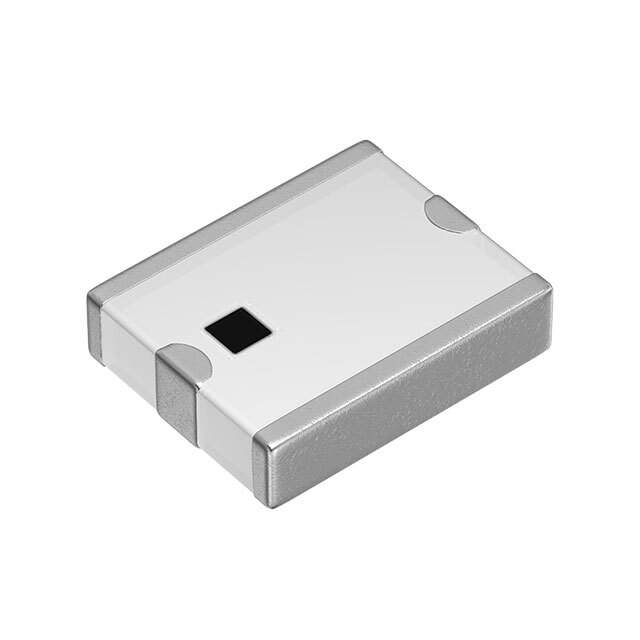

ANT025020LCT1575MA1 Real Image
Same model may have multiple batches, images only for reference.

ANT025020LCT1575MA1

Part No ANT025020LCT1575MA1
Manufacturer TDK Corporation
Catalog RF Antennas
Description CERAMIC CHIP ANTENNA FOR GPS/2.4
Datasheet
ANT025020LCT1575MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Frequency Group Wide Band
Frequency (Center/Band) 1.575GHz, 2.4GHz, 5.5GHz
Frequency Range 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz
Antenna Type Chip
Number of Bands 3
VSWR 1.3, 1.8, 2.4
Termination Solder
Mounting SMD
Height (Maximum) 0.024" (0.60mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 744357-ANT025020LCT1575MA1
Popularity Medium
Supply and Demand Status Balance
Family Name ANT020012CCS2442MA1
Introduction Date March 30, 2011
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ANT025020LCT1575MA1 CAD Model

Description

The TDK Corporation 744357-ANT025020LCT1575MA1 is an SMD chip antenna, manufactured by TDK Corporation.

  • Application: RF/IF and RFID devices
  • Supply and Demand Status: Balanced
  • Frequency Range: Wideband
