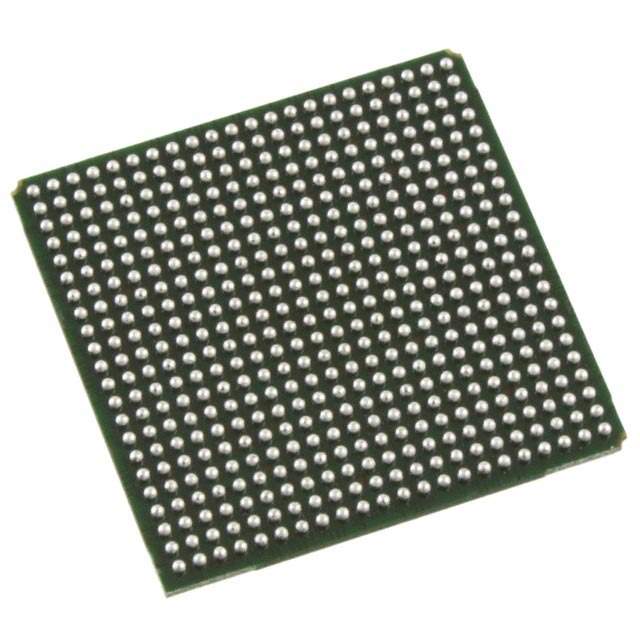

The LFE2M35E-6FN484C is a Field Programmable Gate Array (FPGA) from Lattice Semiconductor Corporation's ECP2M family. It offers a balance of performance, power efficiency, and features, making it suitable for a wide range of applications. The device comes in a 484-pin Fine-Pitch Ball Grid Array (FBGA) package and has a speed grade of -6, indicating its performance level. The 'C' suffix denotes its commercial temperature range.

Applications

• Video Processing: Used in applications like video surveillance, industrial cameras, and display controllers for image enhancement, scaling, and format conversion.
• Industrial Automation: Employed in programmable logic controllers (PLCs), motor control systems, and robotics for real-time control and data acquisition.
• Wireless Communication: Suitable for implementing custom communication protocols, baseband processing, and digital signal processing in wireless devices.
• Test and Measurement Equipment: Used in logic analyzers, oscilloscopes, and signal generators for high-speed data capture and analysis.
• Medical Devices: Can be found in medical imaging equipment and patient monitoring systems for data processing and control functions.

Features

• 35K Logic Elements: Provides a substantial amount of programmable logic for implementing complex digital circuits.
• Embedded Memory: Includes on-chip RAM blocks for data storage and buffering, reducing the need for external memory.
• DSP Blocks: Features dedicated Digital Signal Processing (DSP) blocks for accelerating arithmetic operations and signal processing algorithms.
• High-Speed I/Os: Supports a variety of high-speed I/O standards, including DDR2 and LVDS, for fast data transfer.
• Power Optimization: Designed for low power consumption, making it suitable for battery-powered and energy-sensitive applications.
• Flexible Routing Architecture: Provides a versatile routing fabric for efficient signal routing and connectivity.

Benefits

• Design Flexibility: Enables designers to implement custom logic functions and adapt to changing requirements.
• Faster Time-to-Market: Allows for rapid prototyping and development of digital systems, shortening the product development cycle.
• Improved Performance: Accelerates critical algorithms and tasks through hardware acceleration and optimized architecture.
• Reduced System Cost: Integrates multiple functions into a single device, reducing the bill of materials (BOM) and board space.
• Enhanced Reliability: Provides robust and reliable operation in demanding environments.

Additional Details

The LFE2M35E-6FN484C operates within a commercial temperature range. It offers a rich set of features, including programmable I/O, clock management circuitry, and configuration options. Detailed specifications, including the number of RAM blocks, DSP block capabilities, and supported I/O standards, can be found in the Lattice Semiconductor datasheet for this device. The FBGA package provides excellent thermal performance and facilitates high-density board layouts.
