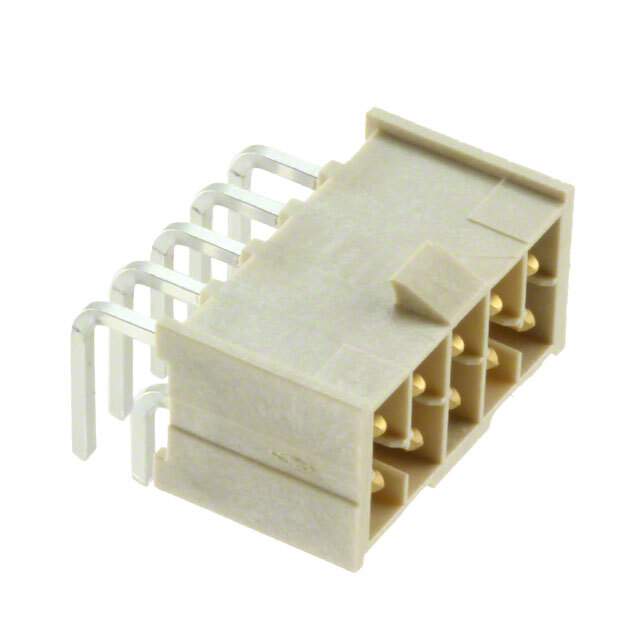

Same model may have multiple batches, images only for reference.

IPL1-105-01-S-D-RA-K

Name: IPL1-105-01-S-D-RA-K
Brand: Samtec Inc.
SKU: 921315
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL1-105-01-S-D-RA-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2.54MM
Datasheet	IPL1-105-01-S-D-RA-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Manufacturer	Samtec Inc.
Series	Mini Mate® IPL1
Package	Tube
Operating Temperature Range	-55°C ~ 125°C
Mounting	Through Hole, Right Angle
Family Name	IPL1-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	IPL1-105-01-S-D-RA-K-ND, SAM8826
Quantity per package	1
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	921315-IPL1-105-01-S-D-RA-K
Ultra Librarian 3D Model	Ultra Librarian IPL1-105-01-S-D-RA-K CAD Model

Alternative Products

Description

Samtec Inc. presents the Mini Mate® IPL1 series connector header through hole with a right angle of 10 positions and a pitch of 0.100" (2.54mm).

Temperature Range: -55°C to 125°C
Mounting: through-hole
Part Number: IPL1-105-01-S-D-RA-K
Packaging: tube
Quantity per Package: 1
Popularity: high
Supply and demand: balanced
Counterfeit Threat: low
Open Market: 68%
ECCN: EAR99
REACH: unaffected
