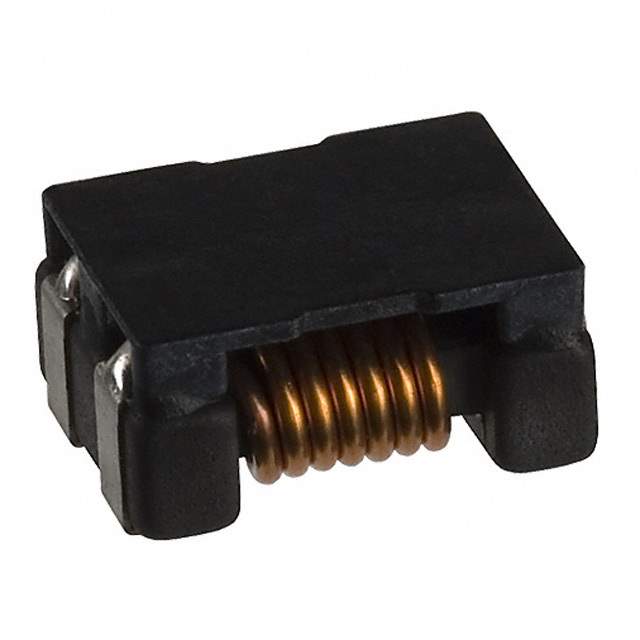

ACM90V-701-2PL-TL00 Real Image
Same model may have multiple batches, images only for reference.

ACM90V-701-2PL-TL00

Part No ACM90V-701-2PL-TL00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 5A 2LN 700 OHM SMD AEC-Q200
Datasheet
ACM90V-701-2PL-TL00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 10 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 J-Lead
Win Source Part Number 007863-ACM90V-701-2PL-TL00
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM90V-701-2PL-TL00 CAD Model

Description

Product Overview

The ACM90V-701-2PL-TL00 stands out with its advanced technology integration, making it a top choice for cutting-edge projects. It provides outstanding functionality and adaptability.

Applications

  • Smart home devices
  • Wireless communication systems
  • Energy management solutions
  • Data centers

Features and Benefits

  • Integrated technology features for enhanced performance
  • Exceptional adaptability to various use-cases
  • Optimized for reduced power consumption
  • Long-term reliability and support

This product is crafted to meet the rigorous demands of modern technological solutions.
