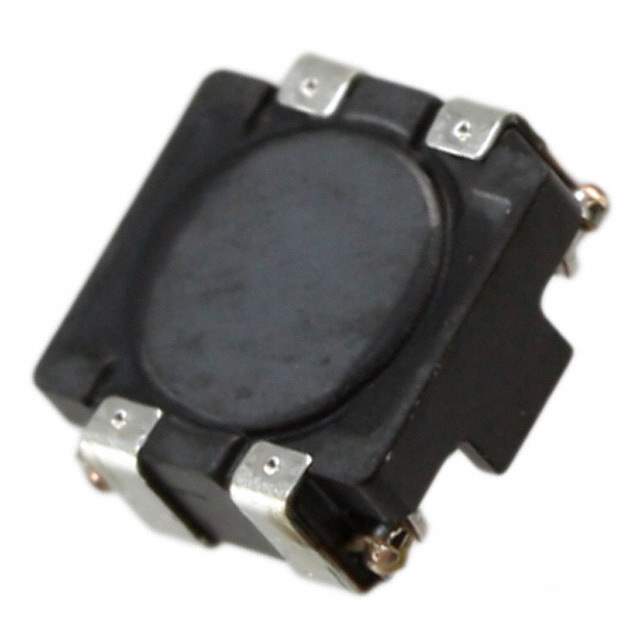

ACM4520-142-2P-TL000 Real Image
Same model may have multiple batches, images only for reference.

ACM4520-142-2P-TL000

Part No ACM4520-142-2P-TL000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 1.4 KOHM SMD
Datasheet
ACM4520-142-2P-TL000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 1.4 kOhm @ 100MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 80 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 128583-ACM4520-142-2P-TL000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian ACM4520-142-2P-TL000 CAD Model

Description

The ACM4520-142-2P-TL000 offers advanced performance in managing electromagnetic interference. Its design optimizes both size and performance, making it a perfect fit for modern electronic systems.

Features and Benefits

  • Low-profile design
  • Enhanced EMI suppression
  • High thermal stability
  • Low power loss

Applications and Projects

  • Mobile devices
  • Industrial control systems
  • Home automation products
  • Audio-visual equipment

Choose the ACM4520-142-2P-TL000 for reliable and efficient performance in critical electronic applications.
