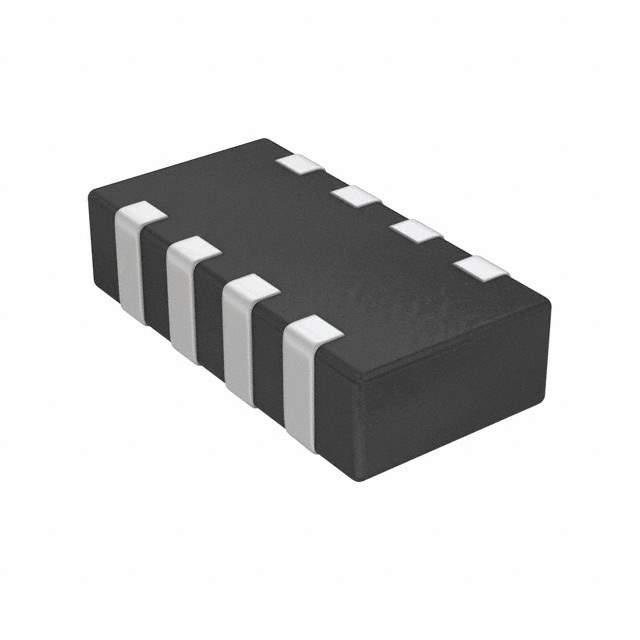

TCM2010H-900-4P-T000 Real Image
Same model may have multiple batches, images only for reference.

TCM2010H-900-4P-T000

Part No TCM2010H-900-4P-T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 4LN 90 OHM SMD
Datasheet
TCM2010H-900-4P-T000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 850 mOhm
Voltage Rating - DC 10V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.026" (0.67mm)
Dimension 0504 (1210 Metric), 4 Lead
Win Source Part Number 032026-TCM2010H-900-4P-T000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCM2010H-900-4P-T000 CAD Model

Description

The TDK Corporation 032026-TCM2010H-900-4P-T000 is a signal line filter that is designed to provide high performance and efficiency in various applications.

  • Voltage Rating: 10V
  • Current Rating: 100mA
  • Popularity: Medium
  • Supply and Demand: Balance
  • Lifecycle Status: Obsolete
