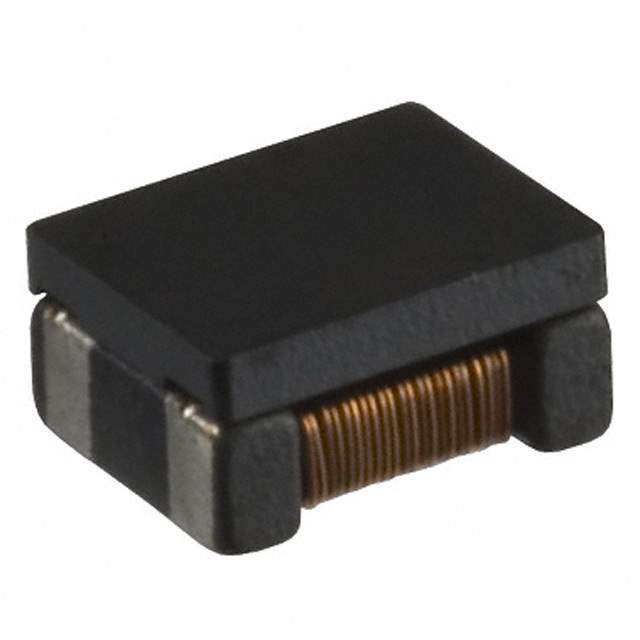

ACM2520-801-3P Real Image
Same model may have multiple batches, images only for reference.

ACM2520-801-3P

Part No ACM2520-801-3P
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Filters For high-speed differential signal line/general signal line | CMC 150MA 3LN 800 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Tape and Reel
Filter Type Signal Line
Number of Lines 3
Impedance at Frequency 800 Ohms at 100MHz
Current Rating (Maximum) 150mA
DC Resistance (DCR) (Maximum) 1.6Ohm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C ~ 85°C
Mounting Style SMD
Parts Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Maximum) 0.051" (1.30mm)
Manufacturer Package 1008 (2520 Metric), 6 PC Pad
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1135269-ACM2520-801-3P
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACM2520-801-3P CAD Model

Description

The ACM2520-801-3P is a filter-type product from TDK Corporation.

  • Supply and demand status: sufficient
  • Manufacturer pack quantity: 2,000
  • Voltage rating: 20V (DC)
  • Packaging: tape and reel
  • Mounting style: SMD
  • Height: 0.051" (1.30mm)
  • Current rating: 150mA
  • DC resistance (DCR): 1.6Ohm (maximum)
  • Lines: 3
  • Impedance: 800 Ohms @ 100MHz
