Same model may have multiple batches, images only for reference.

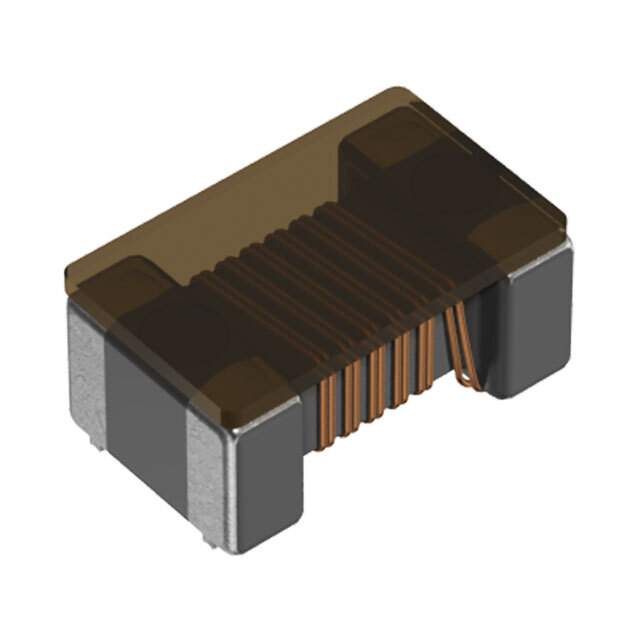

ACM2012E-670-2P-T01 Real Image
Same model may have multiple batches, images only for reference.

ACM2012E-670-2P-T01

Part No ACM2012E-670-2P-T01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 500MA 2LN 67 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features 2 Line Common Mode Choke Surface Mount 67 Ohms @ 100 MHz 500mA DCR 350mOhm
Manufacturer TDK Corporation
Series ACM-E
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-173001-1, 445-173001-2, 445-173001-6
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 909198-ACM2012E-670-2P-T01
Ultra Librarian 3D Model Ultra Librarian ACM2012E-670-2P-T01 CAD Model

Description

The ACM2012E-670-2P-T01 is a common mode choke manufactured by TDK Corporation. It has a resistance of 67 Ohms @ 100 MHz and a current rating of 500 mA.

  • DCR: 350 mOhm
  • Mounting: Surface Mount
  • Series: ACM-E
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: balanced
  • Quantity per Package: 2,000
