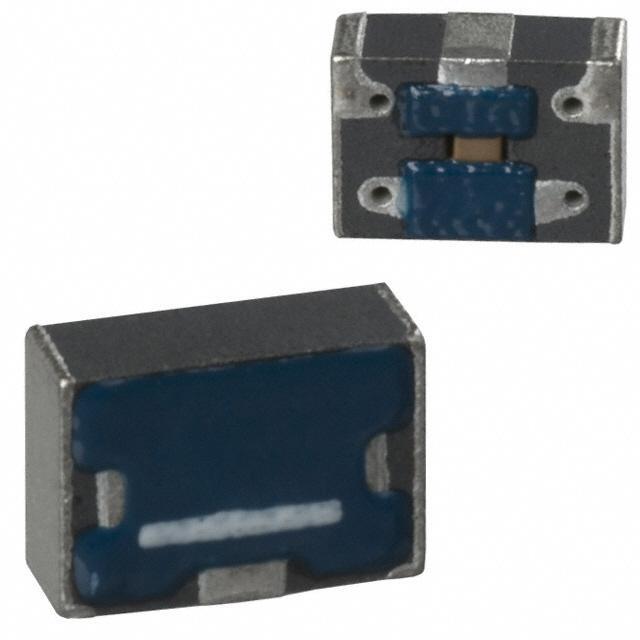

ACH4518-101-TD01

Part No ACH4518-101-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 235MHz to 335MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 007828-ACH4518-101-TD01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-101-TD01 CAD Model

Description

ACH4518-101-TD01 Description

The ACH4518-101-TD01 is a robust and efficient electronic component known for its high performance in a variety of applications. Featuring a compact design, this component is ideal for projects where space and efficiency are vital considerations.

  • Application/Projects:
    • Consumer electronics
    • Automotive systems
    • Communication devices
    • Industrial automation
  • Features and Benefits:
    • Highly efficient power handling
    • Compact and lightweight design
    • Reliable performance under varying conditions
    • Long operational life
  • Additional Details:
    • Designed to meet industry standards
    • Easy to integrate with existing systems
