Same model may have multiple batches, images only for reference.

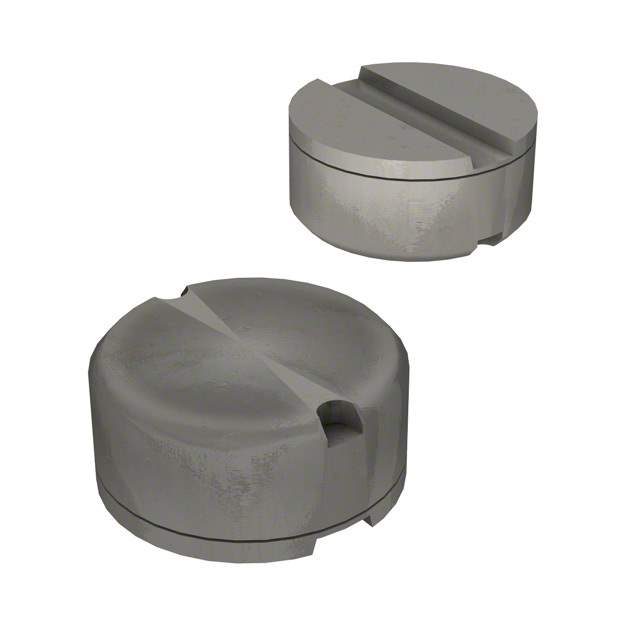

SRR0905-100M Real Image
Same model may have multiple batches, images only for reference.

SRR0905-100M

Part No SRR0905-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0905-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0905
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.1 A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Q @ Freq 39 @ 2.52MHz
Frequency - Self Resonant 29MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.390" Dia (9.90mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0905
Other Names SRR0905100M,SRR0905-100MTR,-SRR0905-100M,SRR0905-100M,-SRR0905-100M,-SRR0905-100MTR,SRR0905-100MCT,-SRR0905-100MCT
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273682-SRR0905-100M
Ultra Librarian 3D Model Ultra Librarian SRR0905-100M CAD Model

Description

The SRR0905 series drum core wirewound inductor is a high-quality electronic component manufactured by Bourns Inc.

  • Shielding: Yes
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Maximum DC Resistance: 60mOhm
  • Q @ Freq: 39 @ 2.52MHz
  • Frequency Self-Resonant: 29MHz
  • Height: 0.189" (4.80mm)
  • Dimension: 0.390" Dia (9.90mm)
  • Current Rating: 2.1 A
  • Temperature Range: -40°C to 125°C
  • Package: tape & reel (TR) or cut tape (CT)
  • Standard Package: 800
