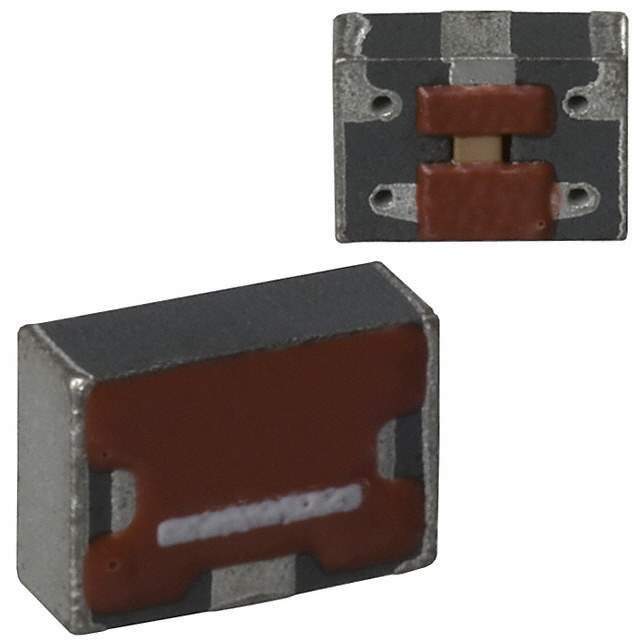

ACF451832-680-TLD01 Real Image
Same model may have multiple batches, images only for reference.

ACF451832-680-TLD01

Part No ACF451832-680-TLD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF451832-680-TLD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 295MHz to 395MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height 0.079" (2.00mm)
Win Source Part Number 129477-ACF451832-680-TLD01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACF451832-680-TLD01 CAD Model

Description

Features and Benefits

  • Low insertion loss
  • Superior filtering capabilities
  • High Q factor

Applications

  • Data transmission systems
  • Electronic testing equipment
  • High-speed networking devices

Additional Details

The ACF451832-680-TLD01 is engineered to offer exceptional filtering capabilities with minimal insertion loss, making it ideal for applications where signal clarity is paramount. Its high Q factor enhances selectivity and sensitivity in communication systems.
