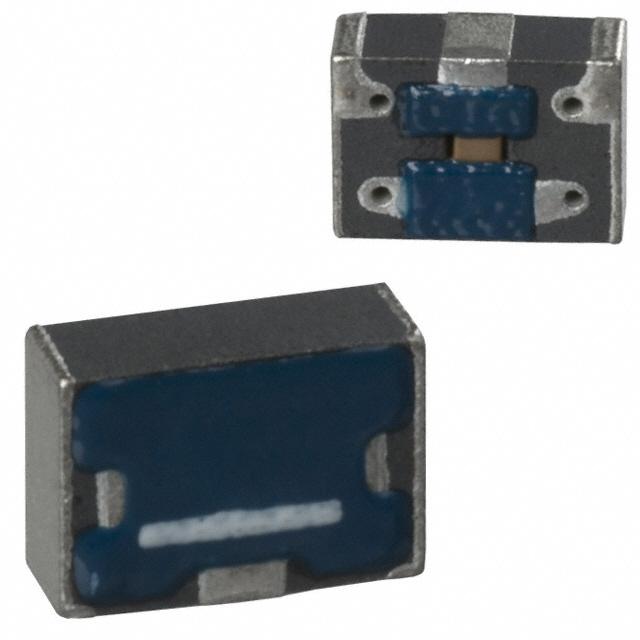

Same model may have multiple batches, images only for reference.
ACH4518-471-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH4518-471-TD01

Part No ACH4518-471-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-471-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 95MHz to 180MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 007835-ACH4518-471-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-471-TD01 CAD Model

Description

Product Overview

The ACH4518-471-TD01 is a versatile and reliable electronic component ideal for various high-frequency applications. This SMD power inductor is designed to store energy in the form of a magnetic field and manage current efficiently.

Features and Benefits

  • High energy storage capacity for stable performance.
  • Compact size for space-saving in modern electronics.
  • Low DC resistance for minimized power loss.

Applications

  • Power supplies
  • DC-DC converters
  • Telecommunication equipment
  • Consumer electronics
