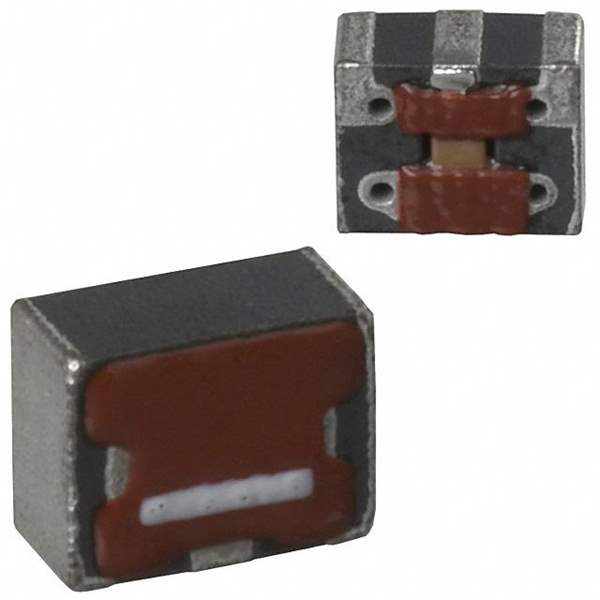

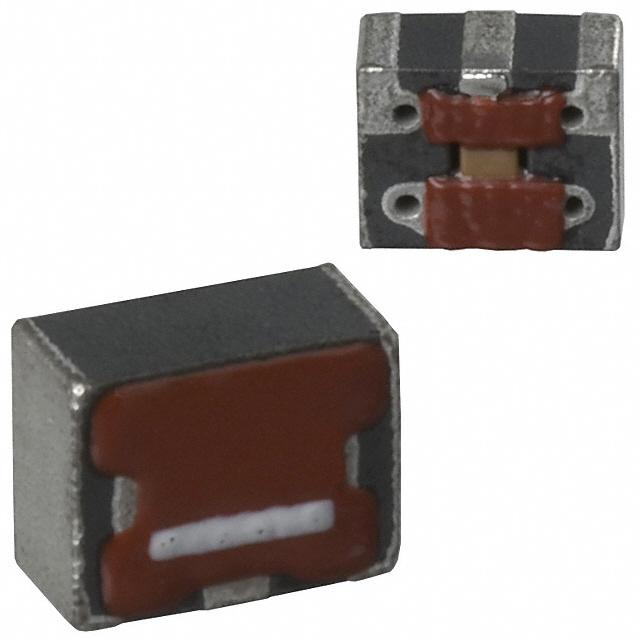

ACF321825-331-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACF321825-331-TD01

Part No ACF321825-331-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF321825-331-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 130MHz to 210MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 130857-ACF321825-331-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF321825-331-TD01 CAD Model

Description

Description

Designed for high-density circuit configurations, the ACF321825-331-TD01 inductor is perfect for engineers seeking reduced electromagnetic interference in electronic designs.

Applications

  • Industrial Control Systems
  • Embedded Microcontroller Boards
  • IoT Devices
  • Audio Equipment

Features and Benefits

  • Exceptional EMI suppression capabilities
  • Consistent inductance performance over a wide temperature range
  • Compact and lightweight design
  • Long lifecycle with minimal maintenance

Additional Details

This component's sophisticated engineering ensures that it supports both simplicity and complexity in design, maintaining high operational effectiveness in various applications.
